  • CM Series

    CM series hydraulic motors are new structural hydraulic motors introduced by our company. These motors have the advantages of high reliability, high efficiency, long life, low noise, large displacement and wide speed range, so that they can be widely used in the hydraulic transmission systems in a number of industries such as marine, plastic machinery, mining, construction, metallurgy, petroleum, and geological prospecting, etc..

Product features

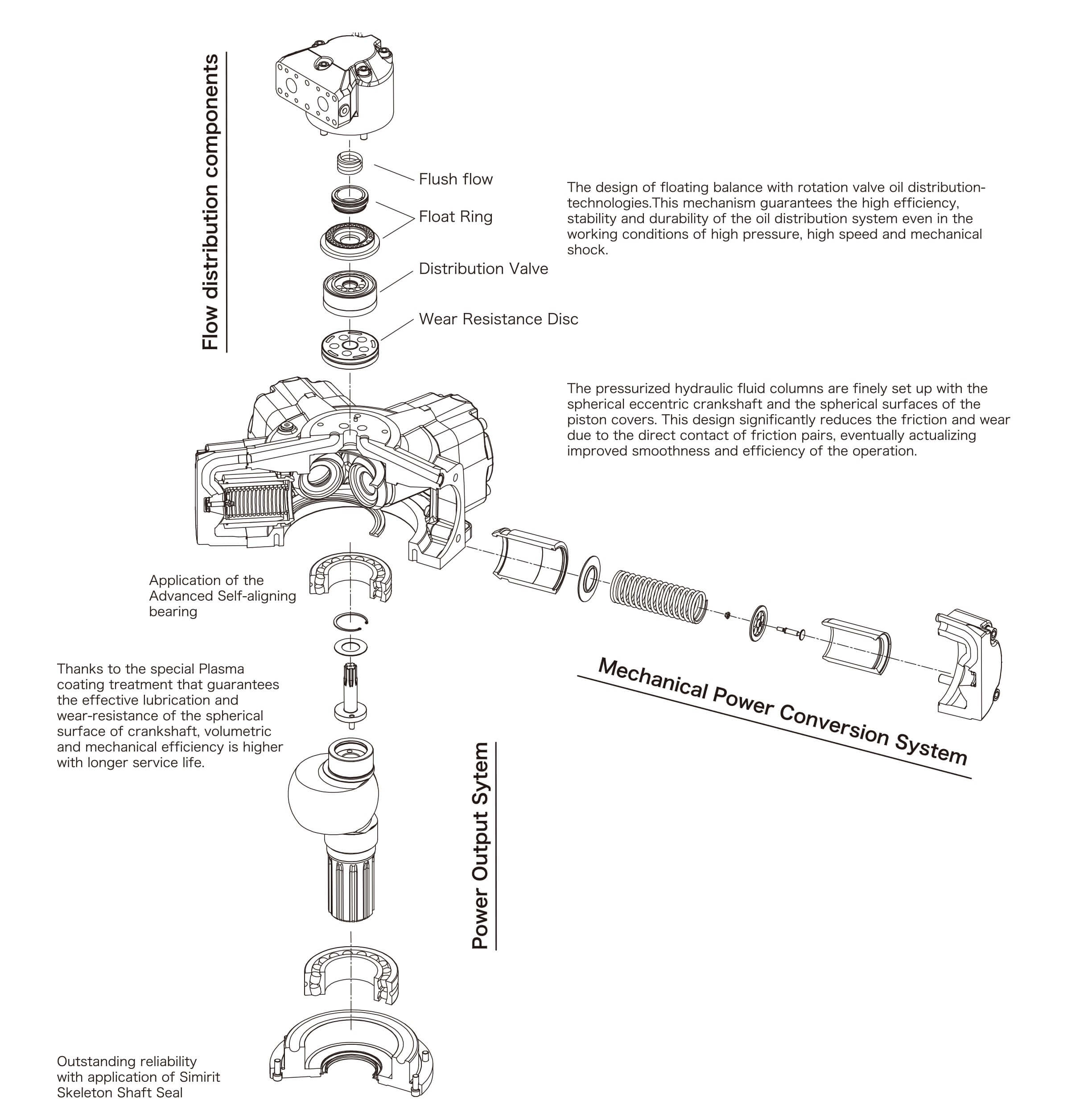

Adopt the design of floating balnace with rotation valve distribution technologies, guarantee the high efficiency. stablity and durability of the oil distribution system even under working conditions of high pressure, high speed and mechanical shock.

The pressurized hydraulic fluid columns are finely set up with the spherical eccentric crankshaft and the spherical surfaces of the piston covers. The design significantly reduces the wear of friction pairs, reaching smooth and higher working efficiency.

Special plasma coating treatment guarantees the effective lubrication and wear-resistance of the spherical surface of crankshaft,  enhances volumetric and mechanical efficiency together with longer service life.

  • Range of application

    Can be widely used in hydraulic transmission system of shipbuilding, plastic machinery, mining, construction metallurgy, petroleum, coal mine, geological drilling and other industries.

CM Series

The following data are measured and obtained under specfic actual experimental conditions, and only for product description purposes. The data shoud not be interpreted as warranted characteristics in legal term.Ningbo lntermot (Ningbo Olil Control Hydraulic Co. Ltd.) reserves the rights to implement modifications without notice. All Partal or total reproduction and copy of such data without formal authorzation is stricty forbidden.

TYPYDisplacement
(ml/rev)
Unit Torque
(N.m/bar)
Rated pressure
(bar)
Max pressure
(bar)
Max Power
(KW)
Rated torque
(Nm)
Rate speed (without flushing)
(r/min)
Max speed(with flushing)
(r/min)
Weight
(Kg)

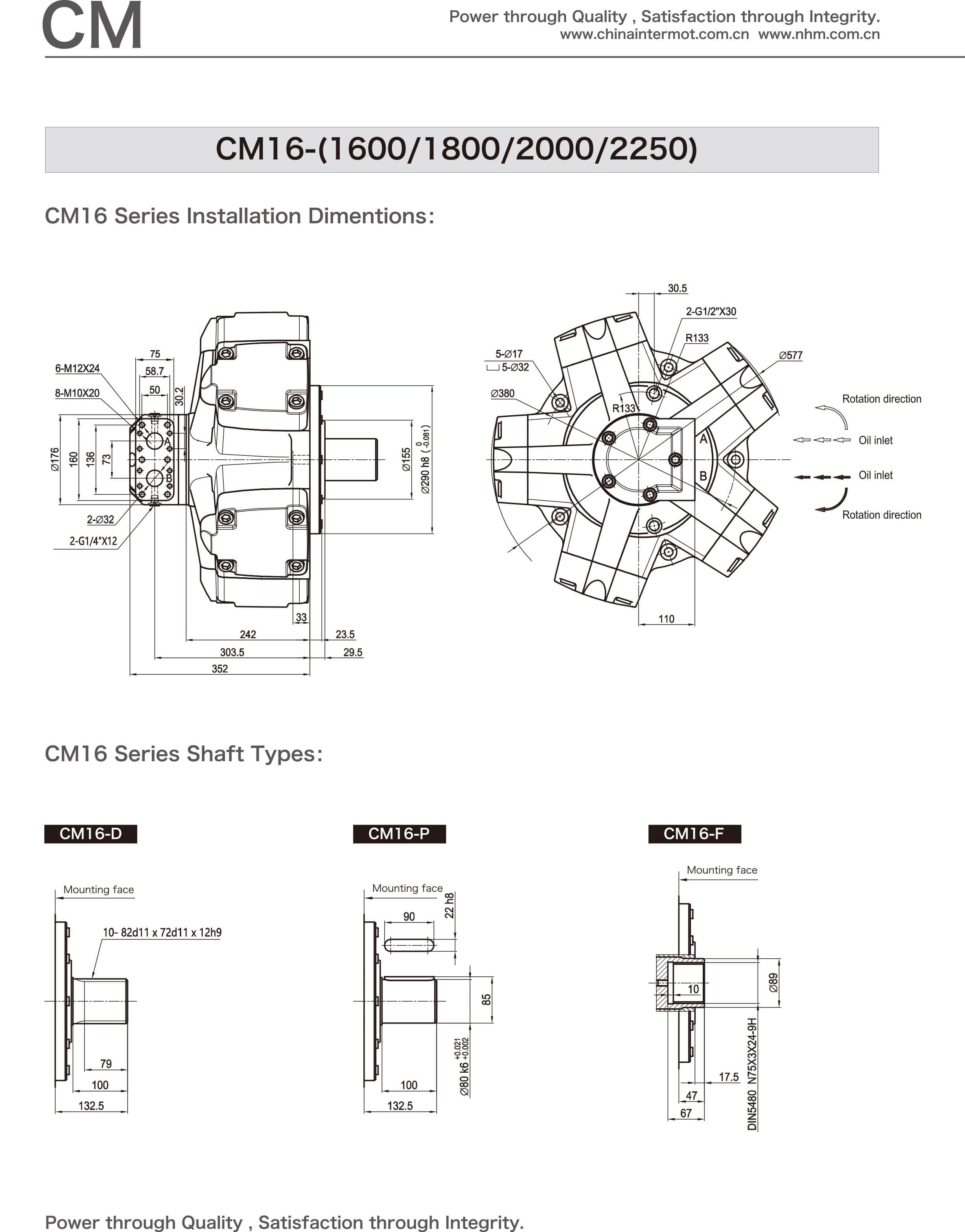

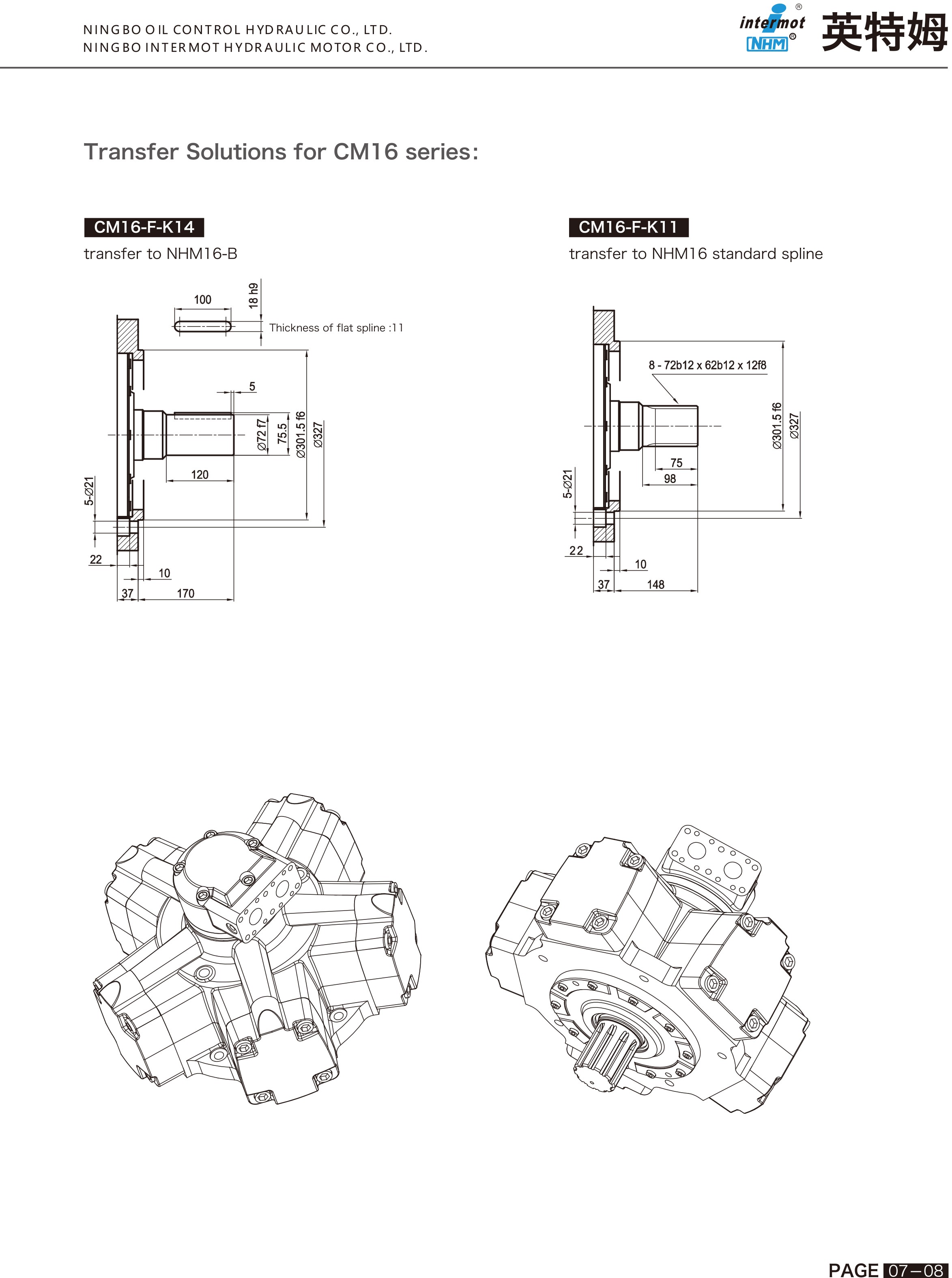

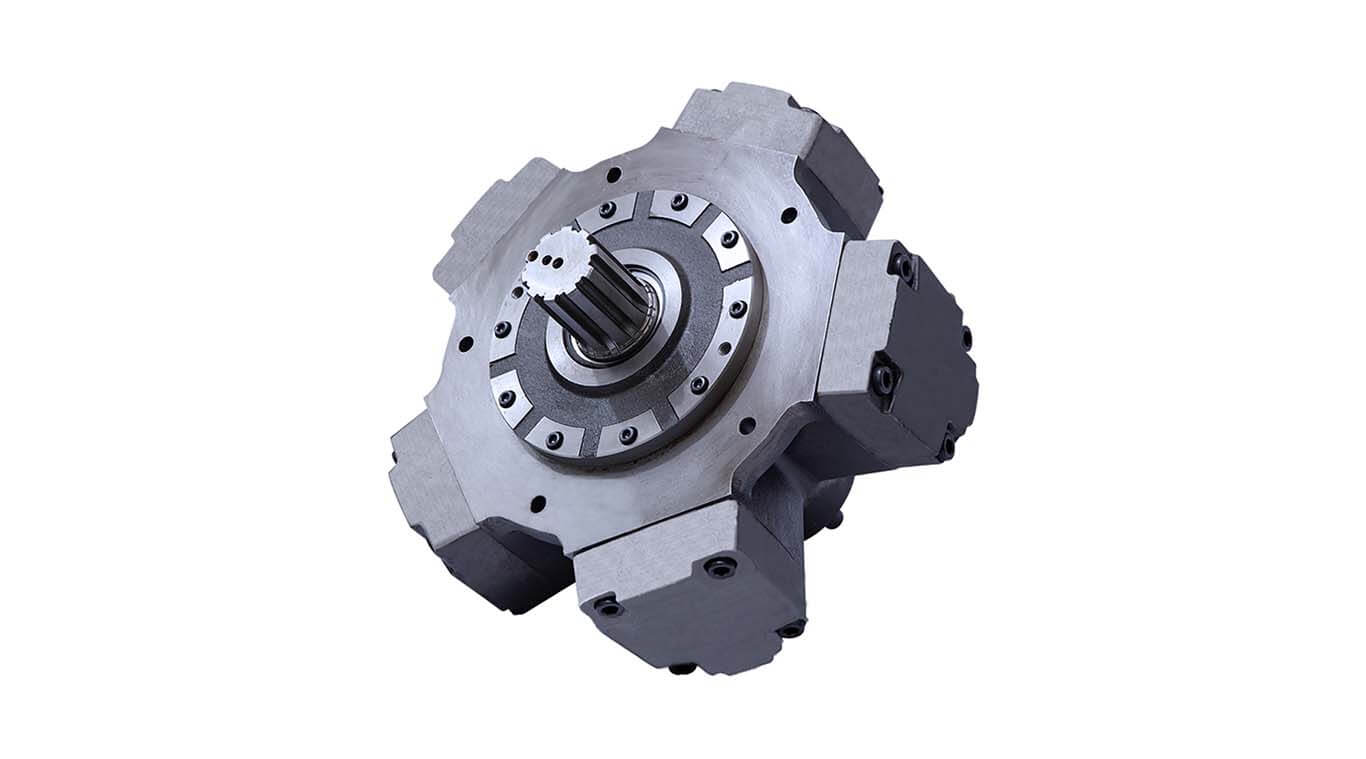

CM16 SeriesCM16-(3).jpg
CM16-1600164624.92102501105221210240220
CM16-1800181627.42102501155760205235220
CM16-2000204330.92102501206480200230220
CM16-2250221333.42102501257020190220220

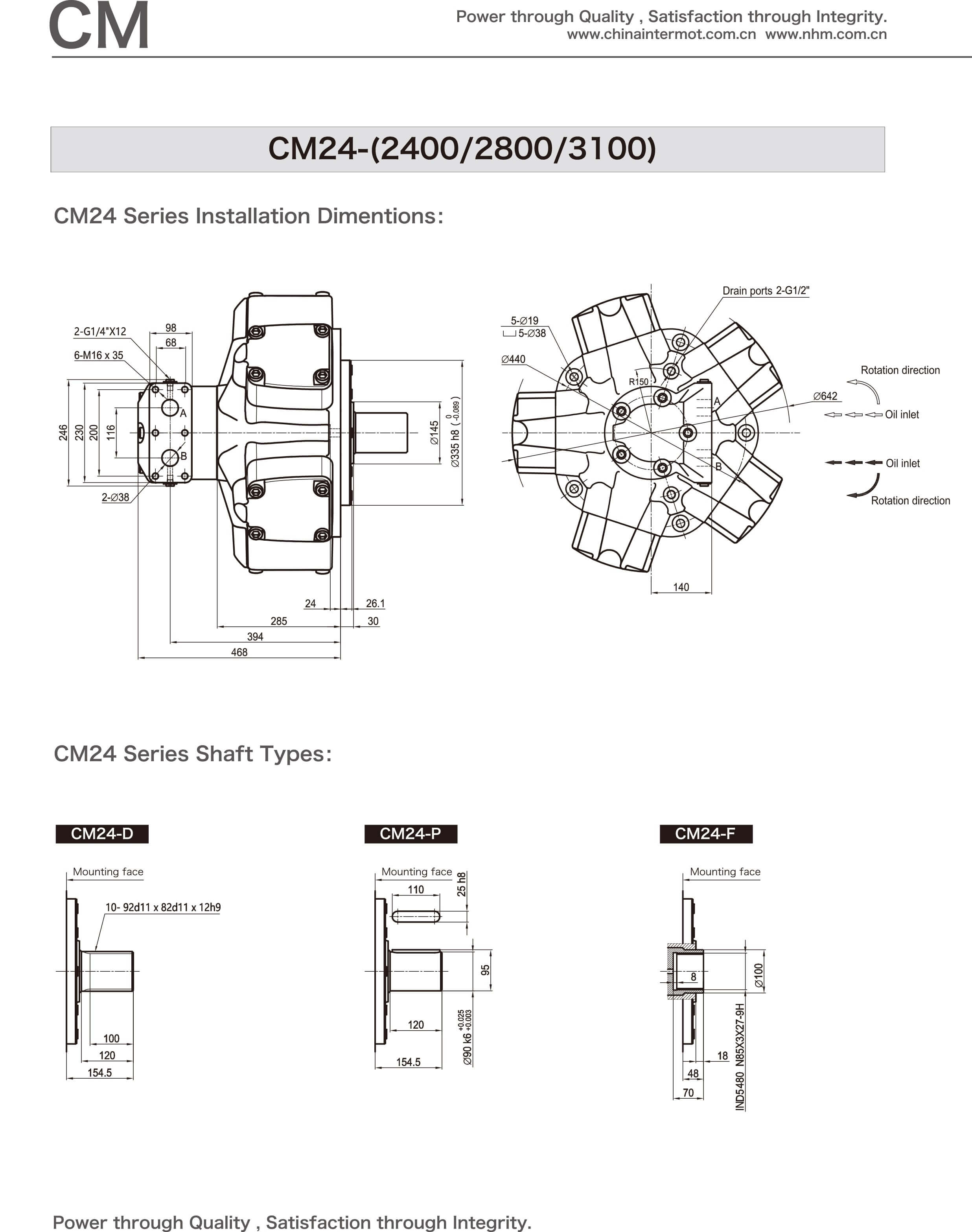

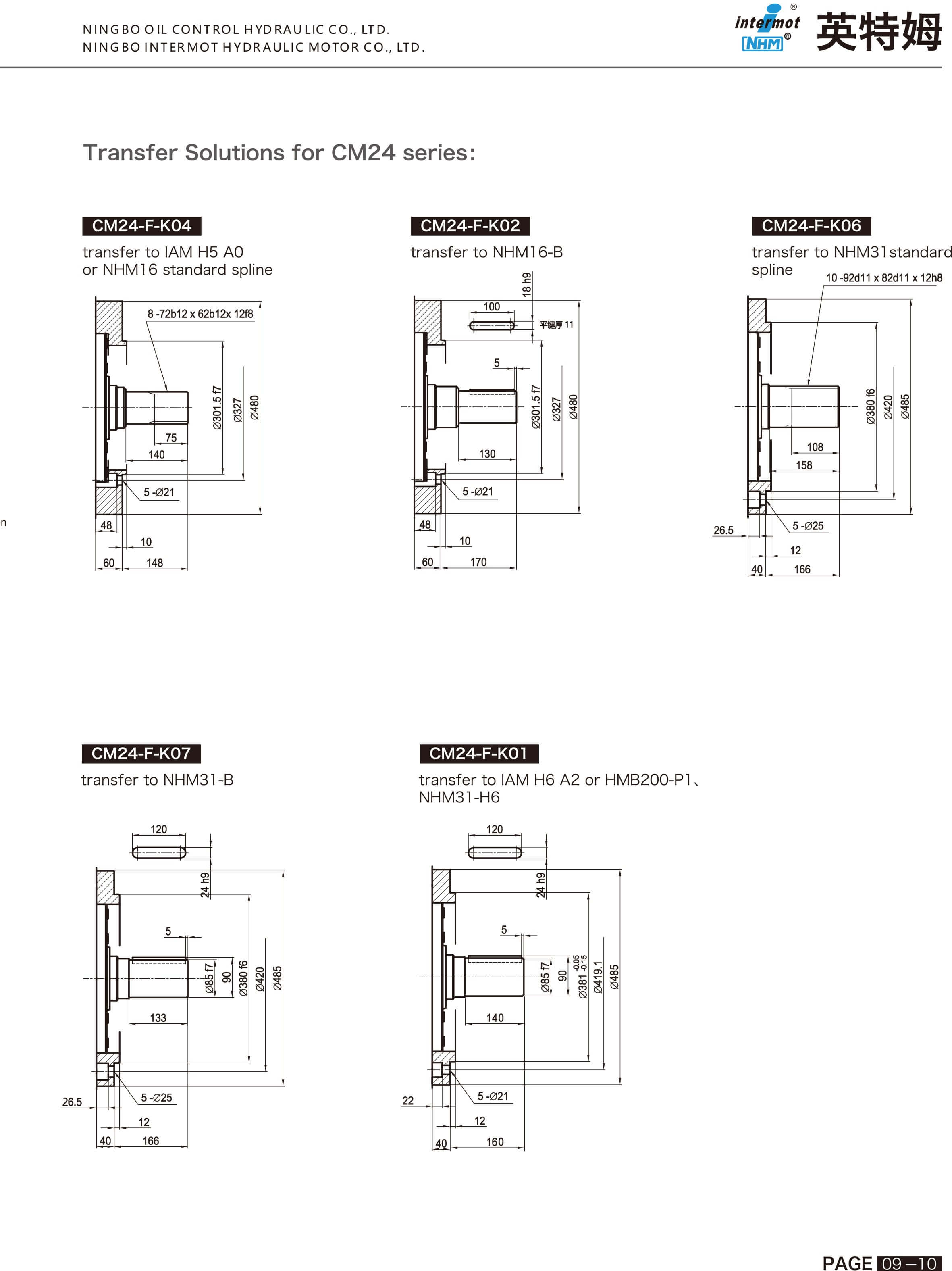

CM24 SeriesCM24.jpg
CM24-2400240037.42102501557854190210316
CM24-2800280042.42102501708904180200320
CM24-3100310046.92102501859849170190330

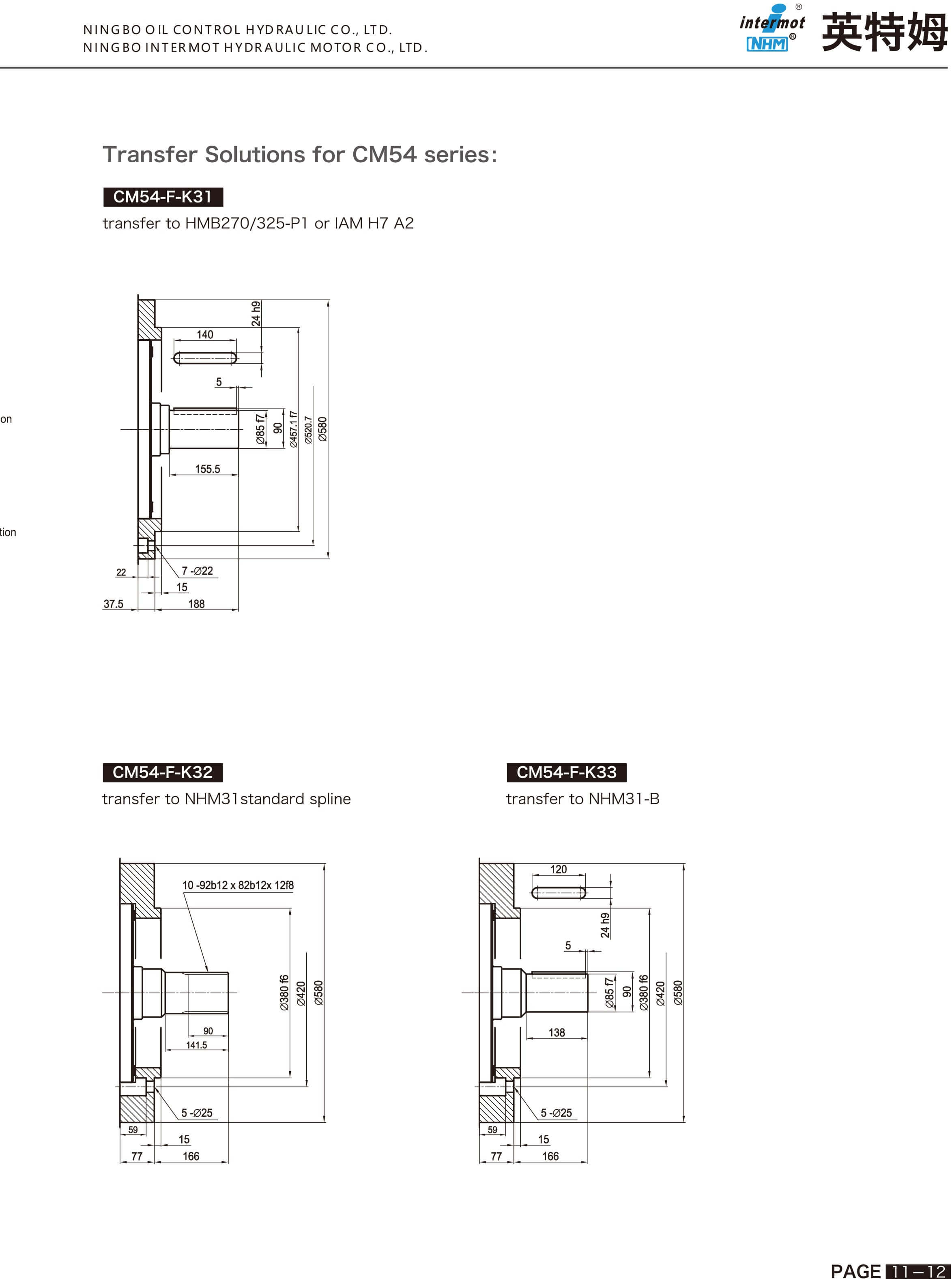

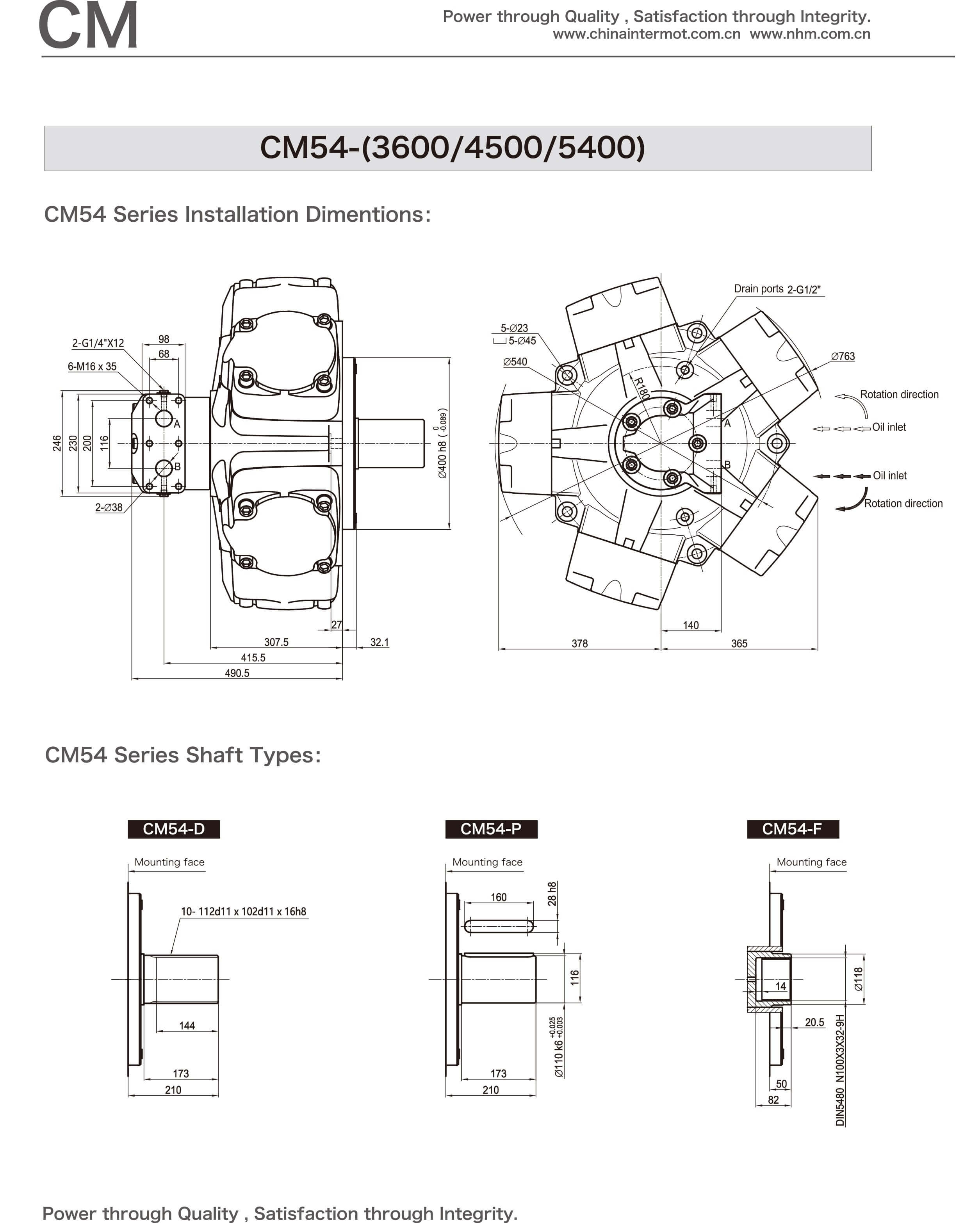

CM54 SeriesCM54.jpg
CM54-3600360054.921025018511529145175500
CM54-4500450068.221025021014322130145520
CM54-5400540081.621025021017136110130550

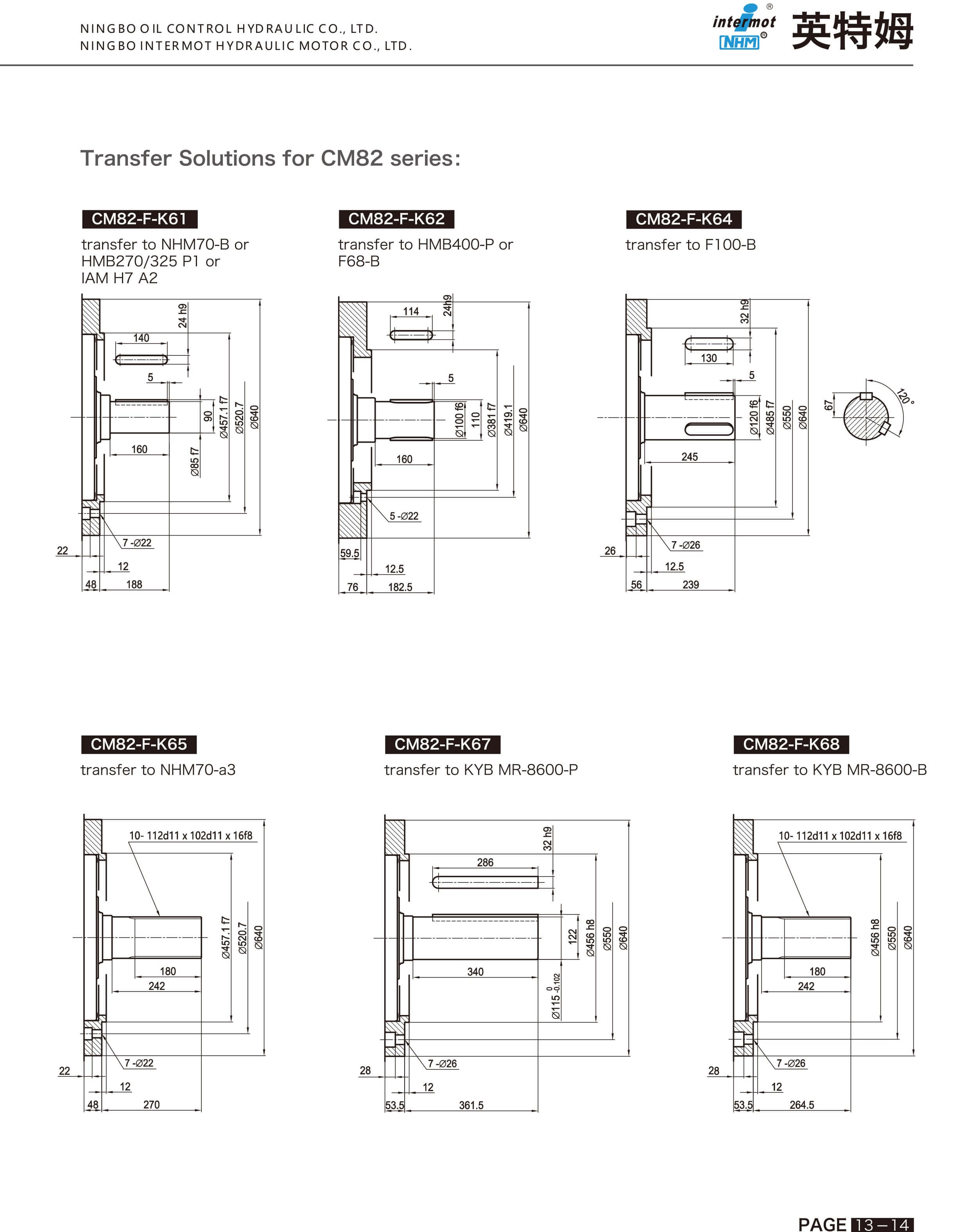

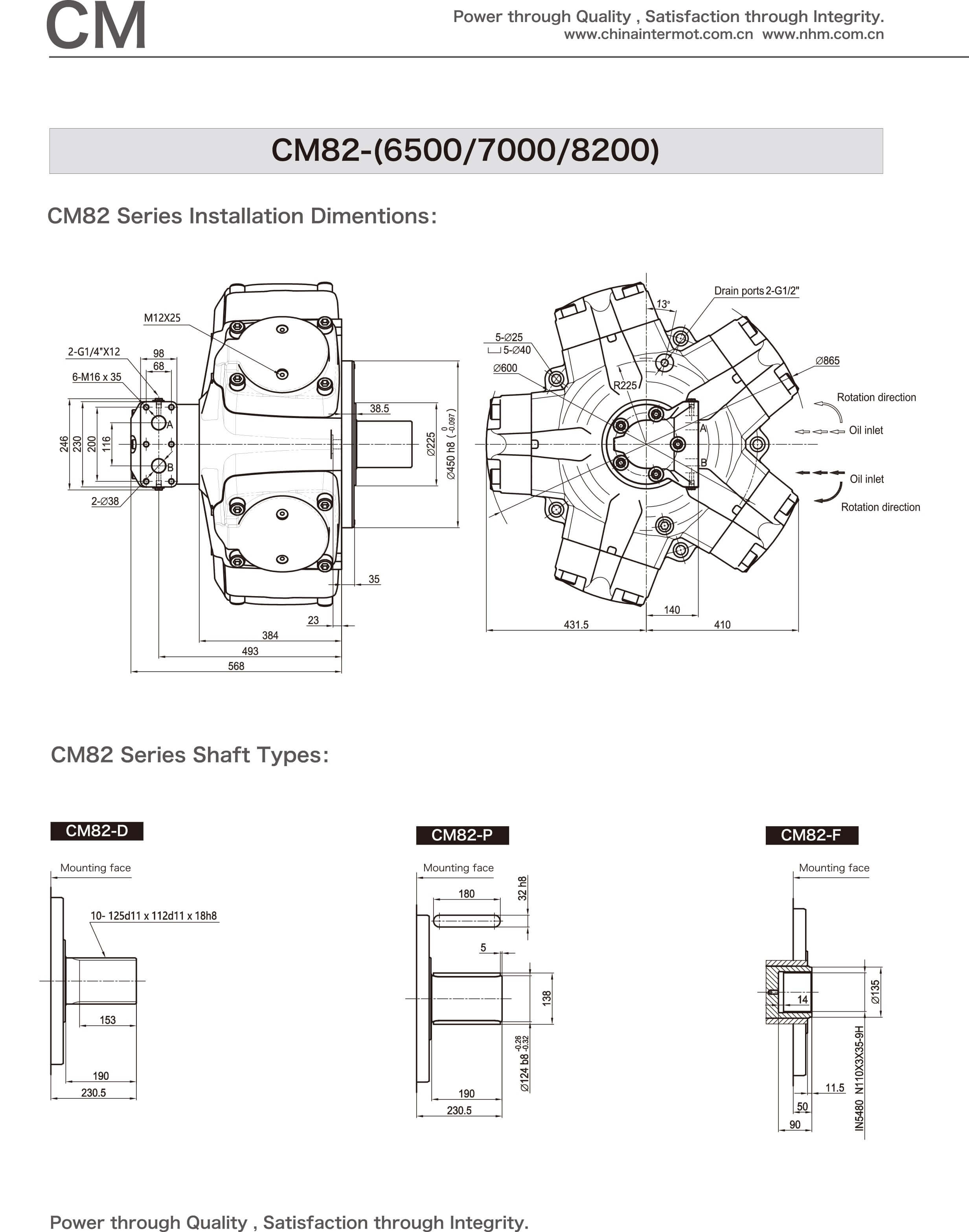

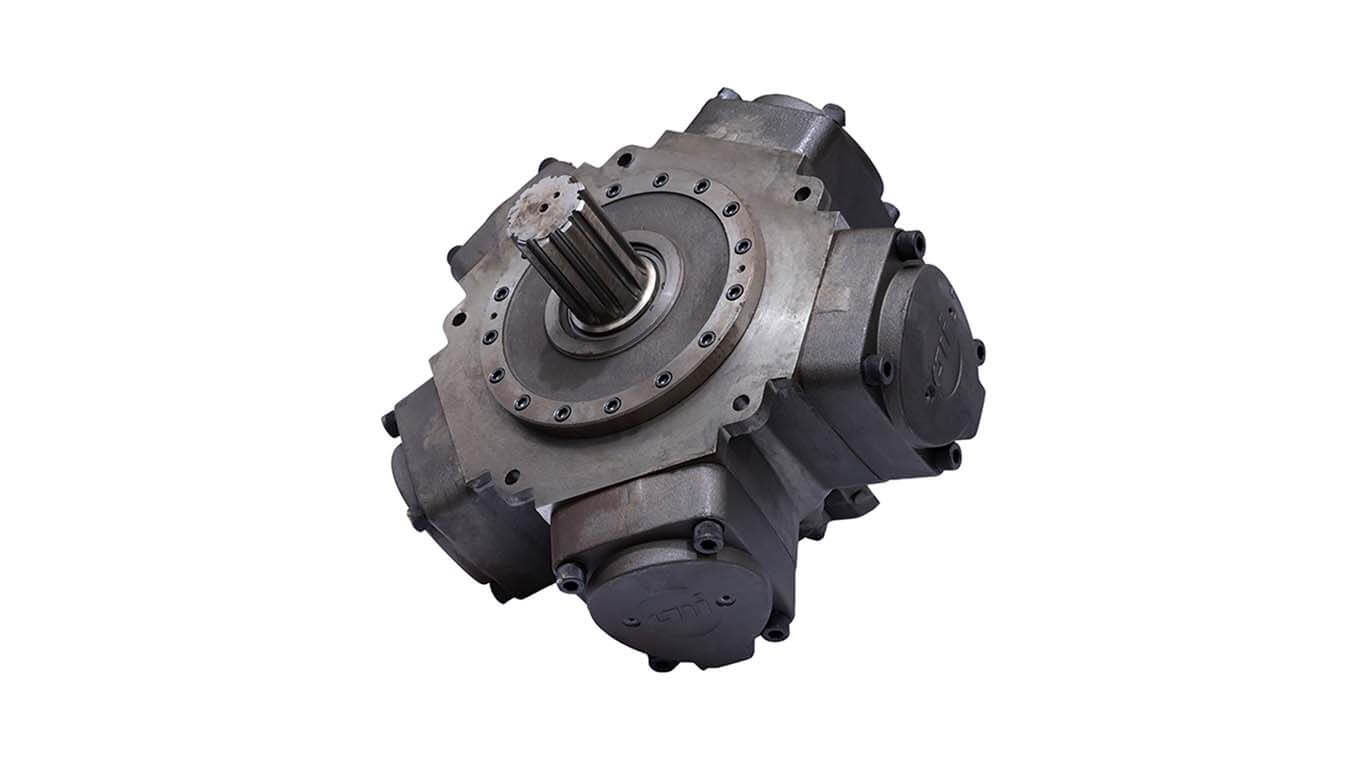

CM82 SeriesCM82.jpg
CM82-6500650098.321025025020643110130760
CM82-70007000106.221025025022302100120770
CM82-82008200124.32102502502610390110780

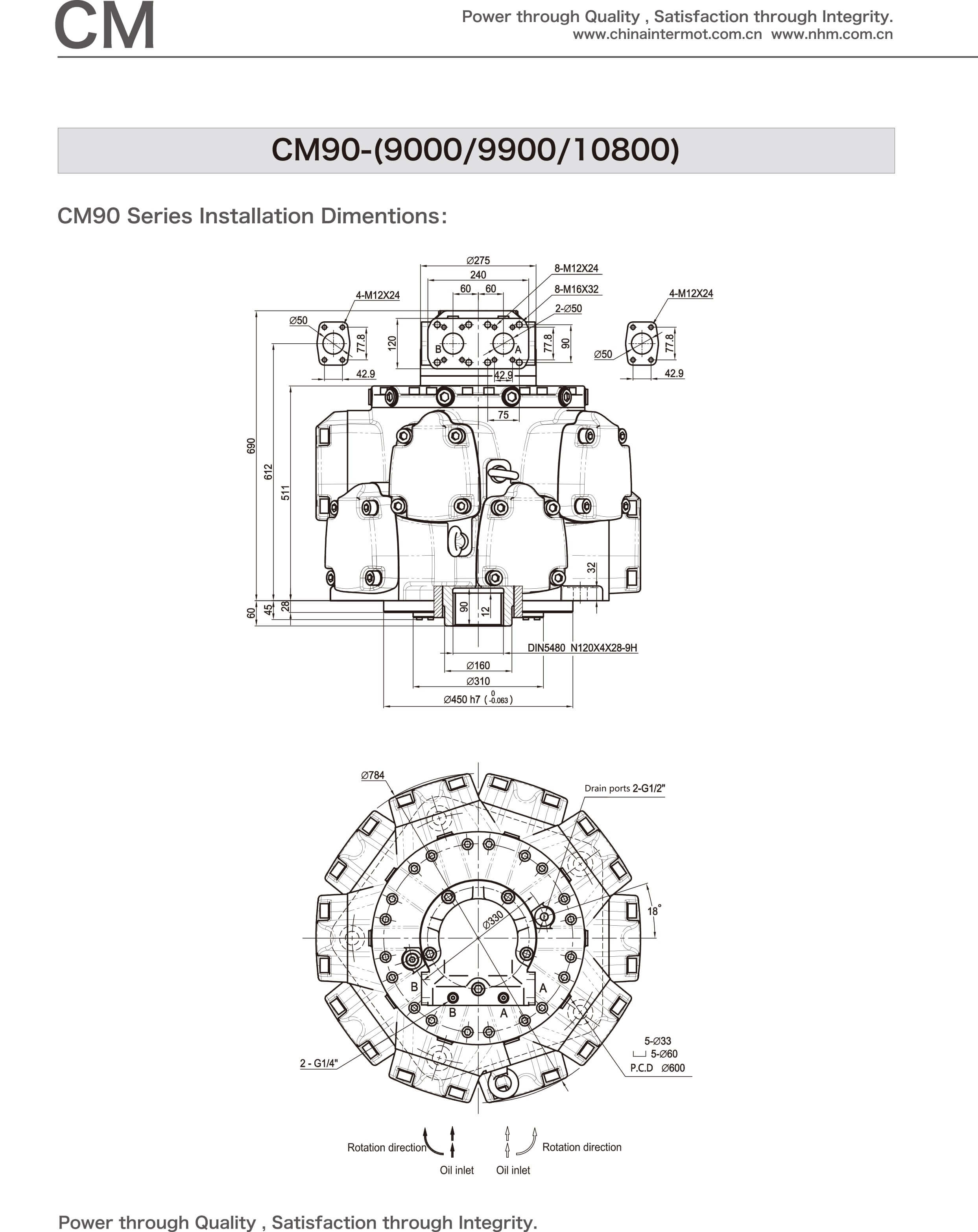

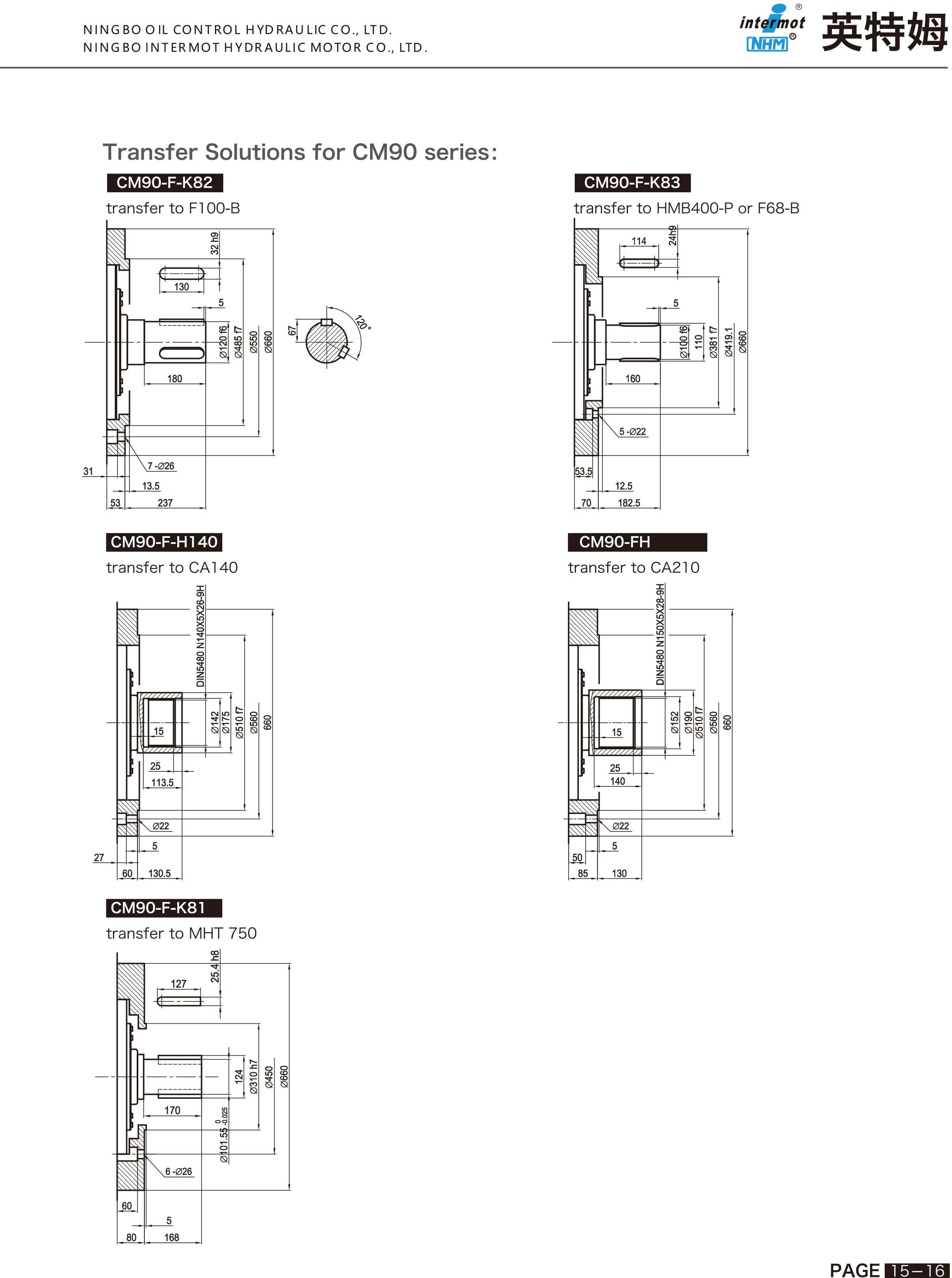

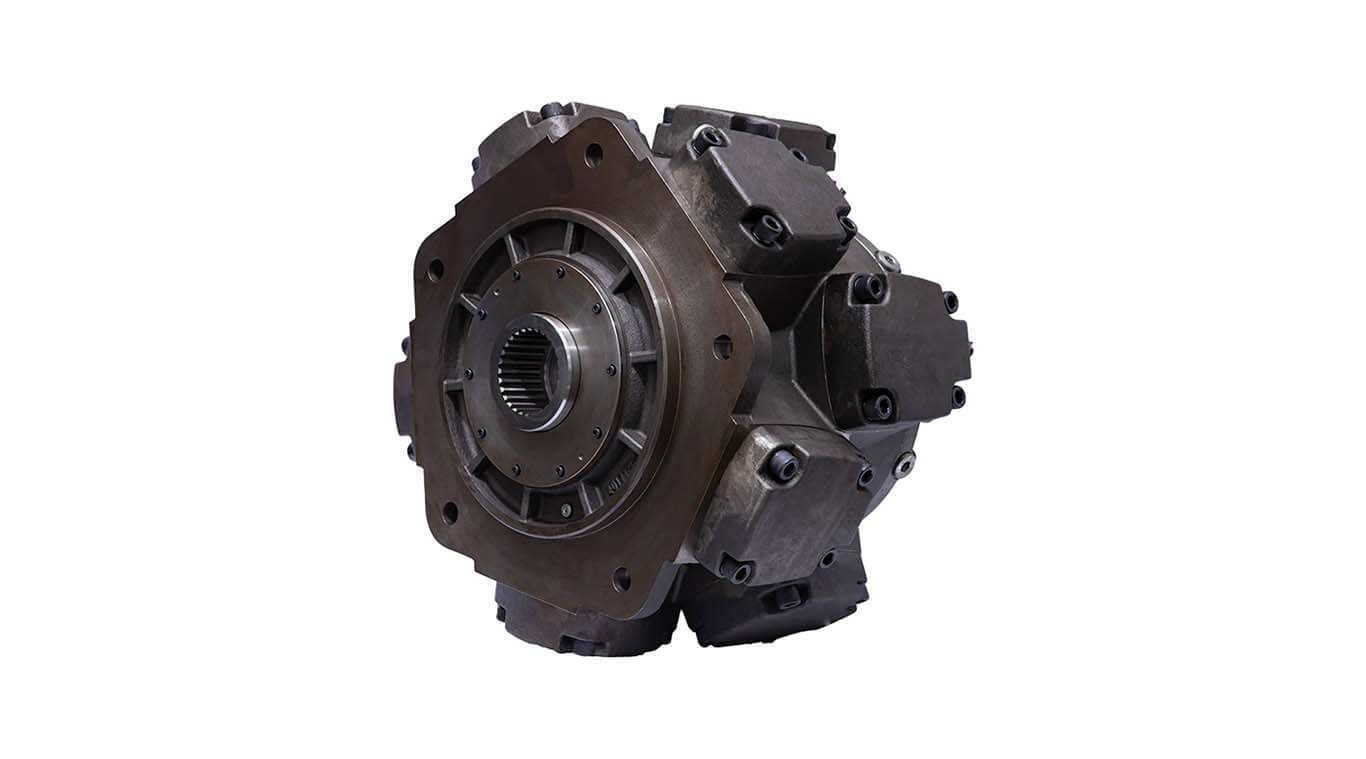

CM90 SeriesCM90.jpg
CM90-90009000136.521025027028665110130.0800
CM90-99009900149.121025028531311100120.0810
CM90-1080010800163.22102503003427290110.0820

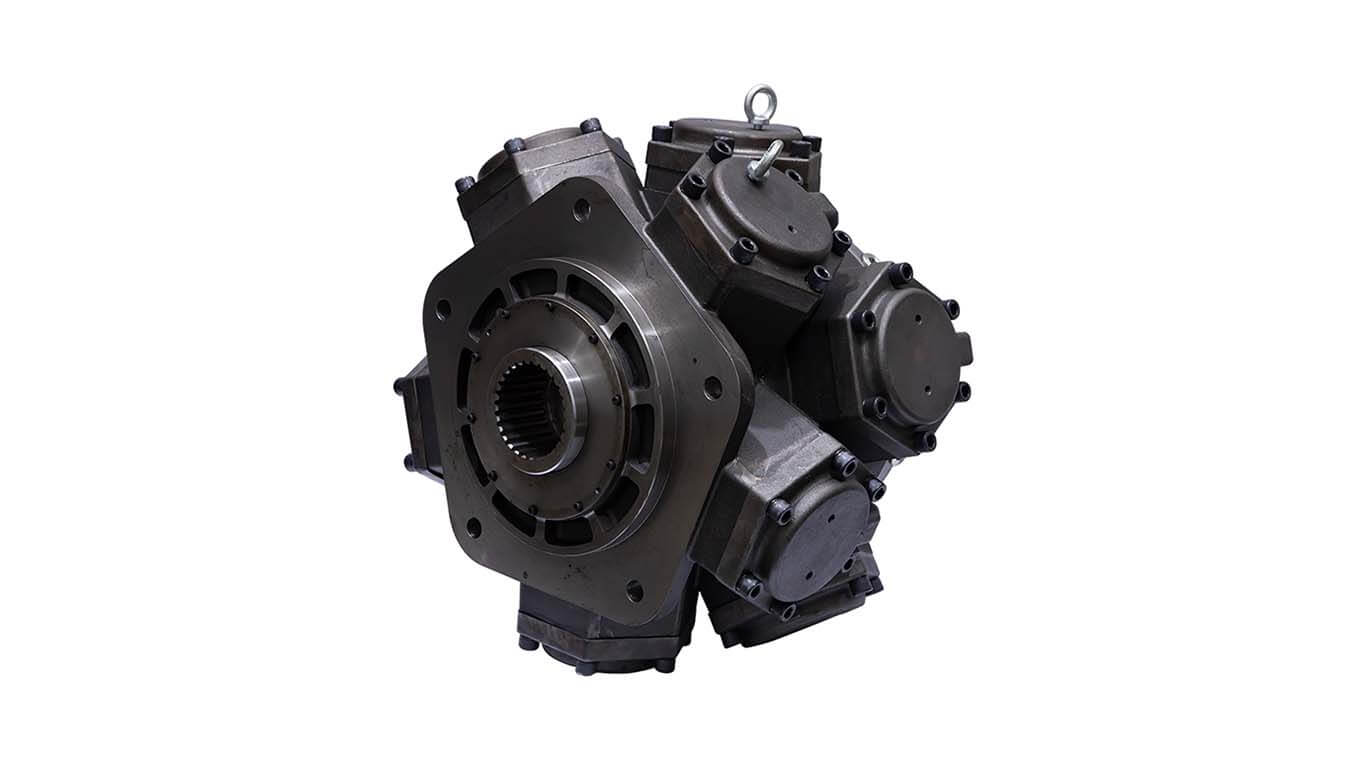

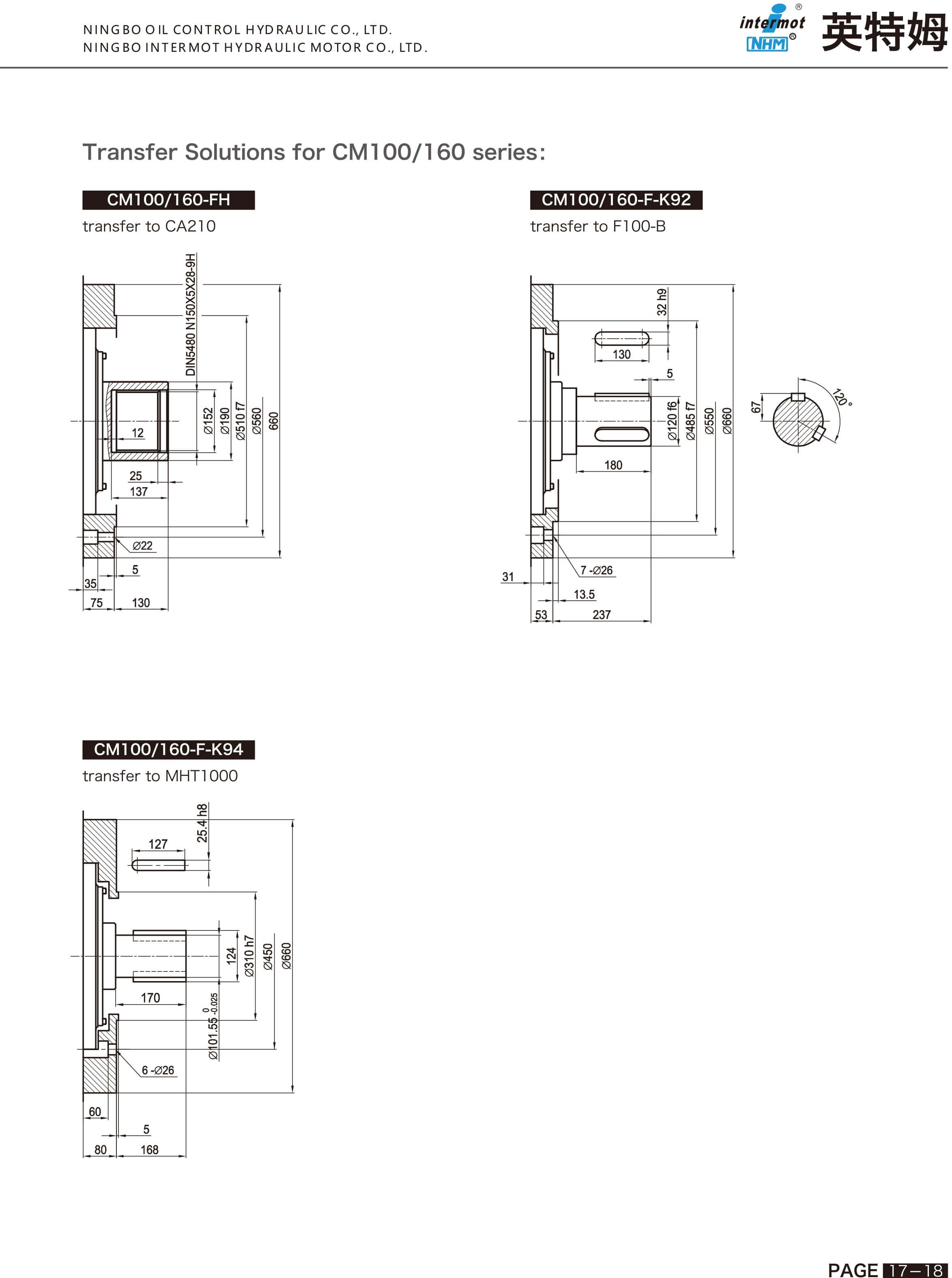

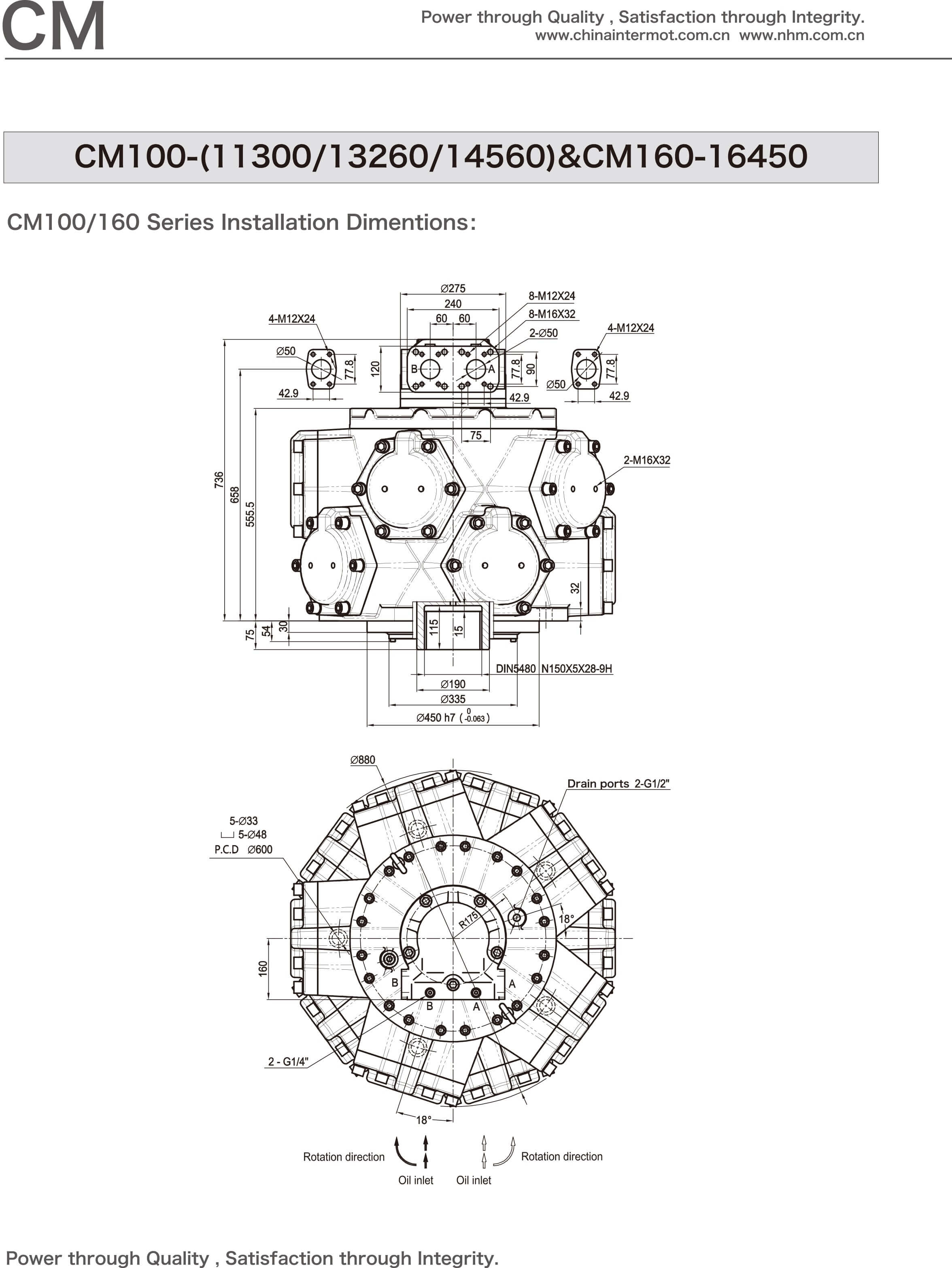

CM100 SeriesCM100.jpg
CM100-1130011300174.421025031036624901101020
CM100-1320013260200.521025032042105801001030
CM100-1456014560220.52102503354630570901050
CM160 SeriesCM100.jpg

CM160-1600016000248.52102503355218560751080

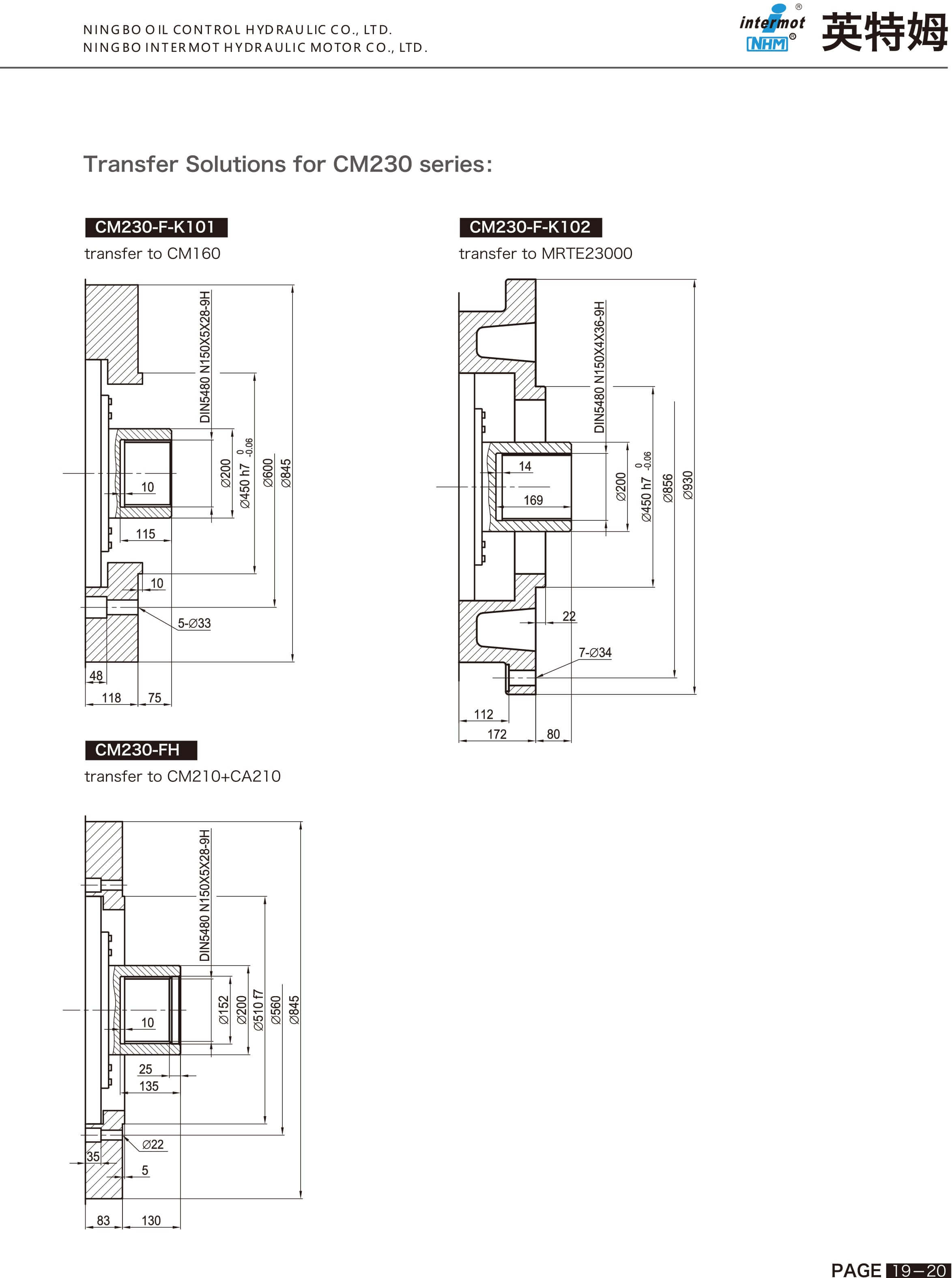

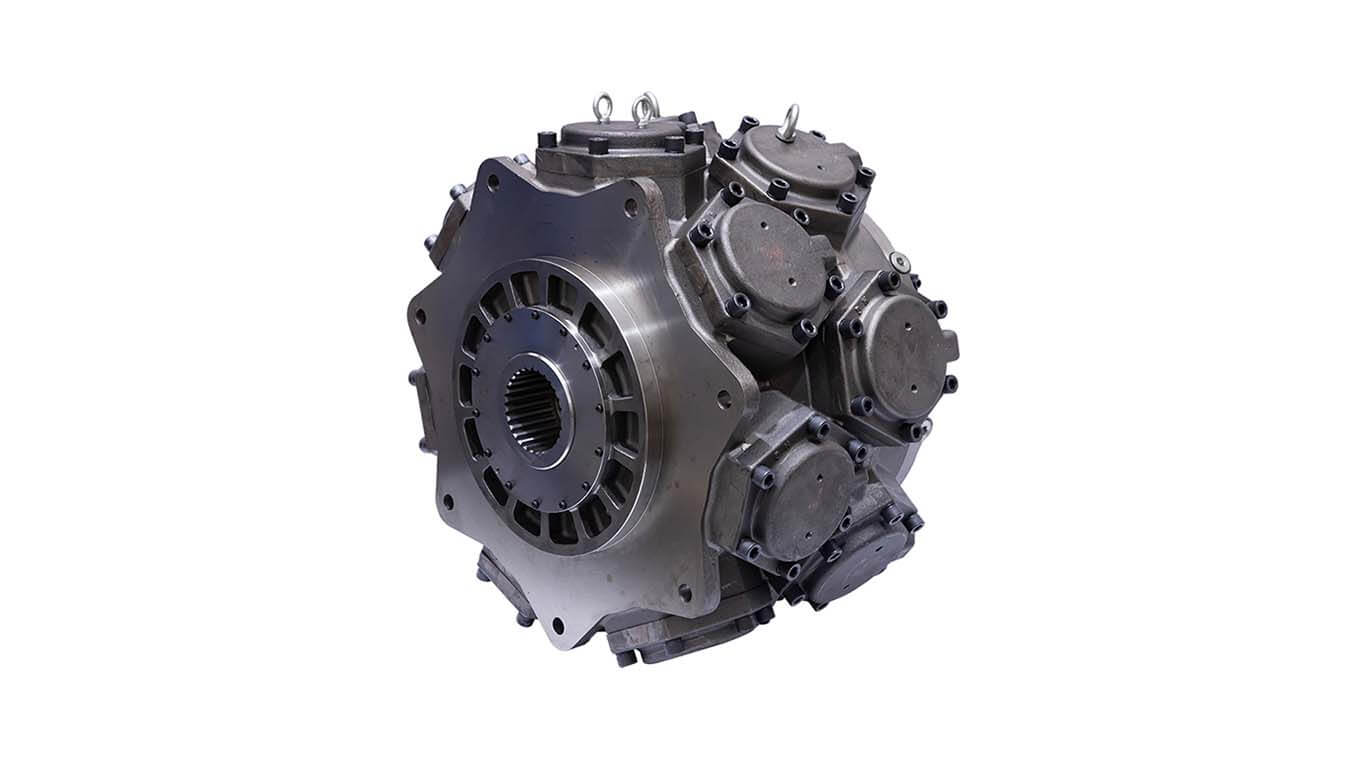

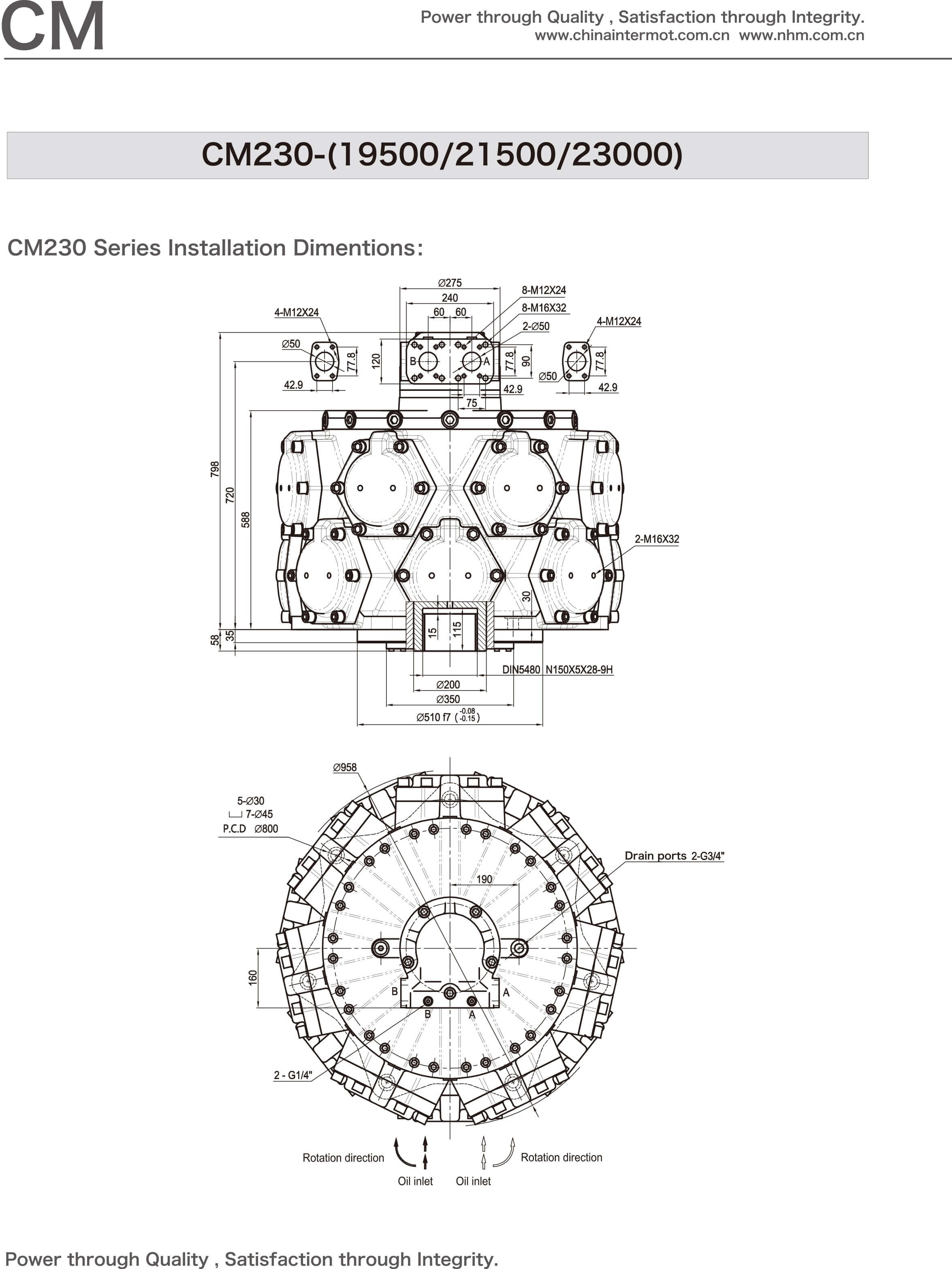

CM230 SeriesCM230.jpg
CM230-1950019500297.32102503106243360651480
CM230-2150021500329.02102503206909055601480
CM230-2300023000347.92102503357305950551480

Load more>>

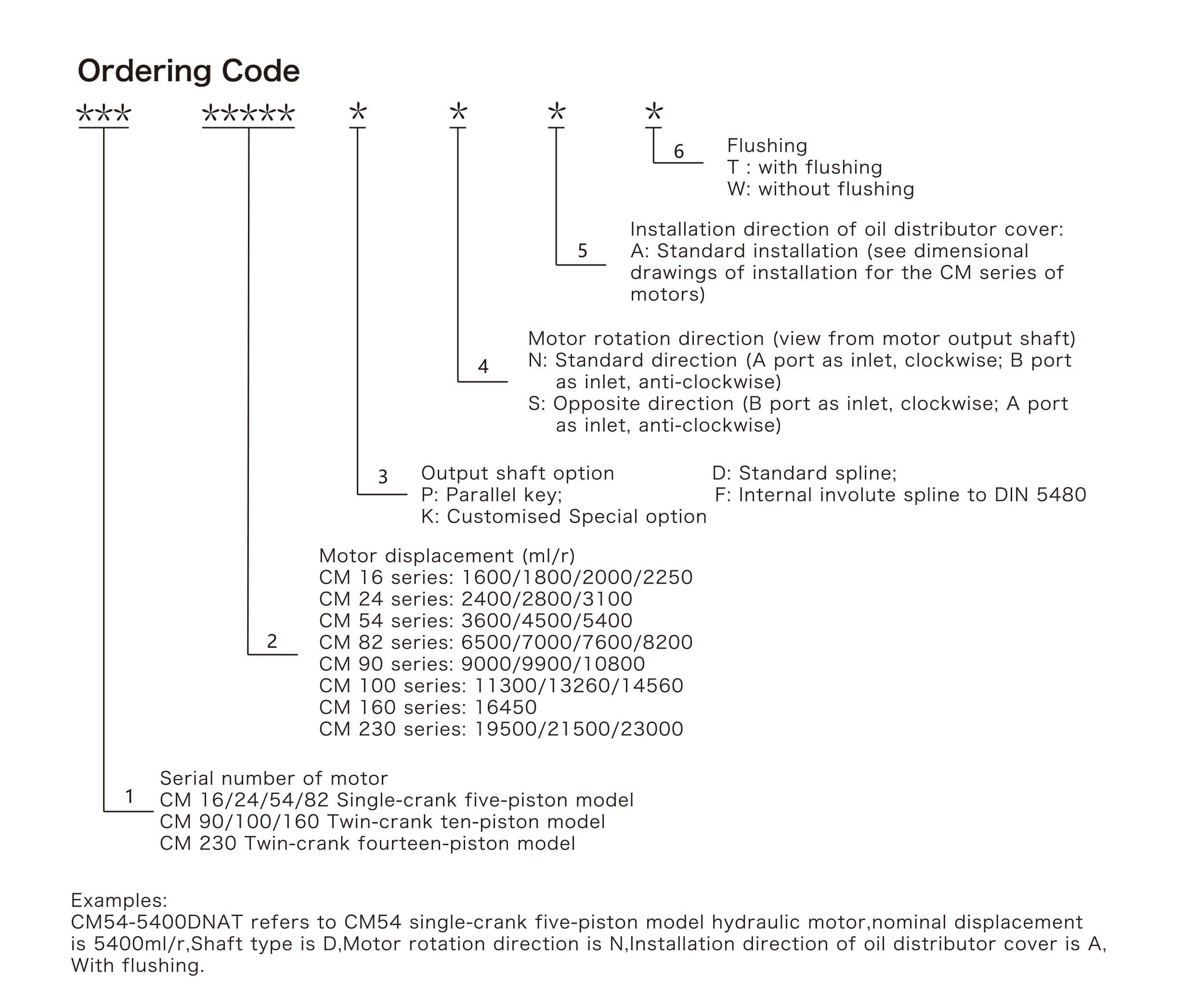

Product identification description


Structural features

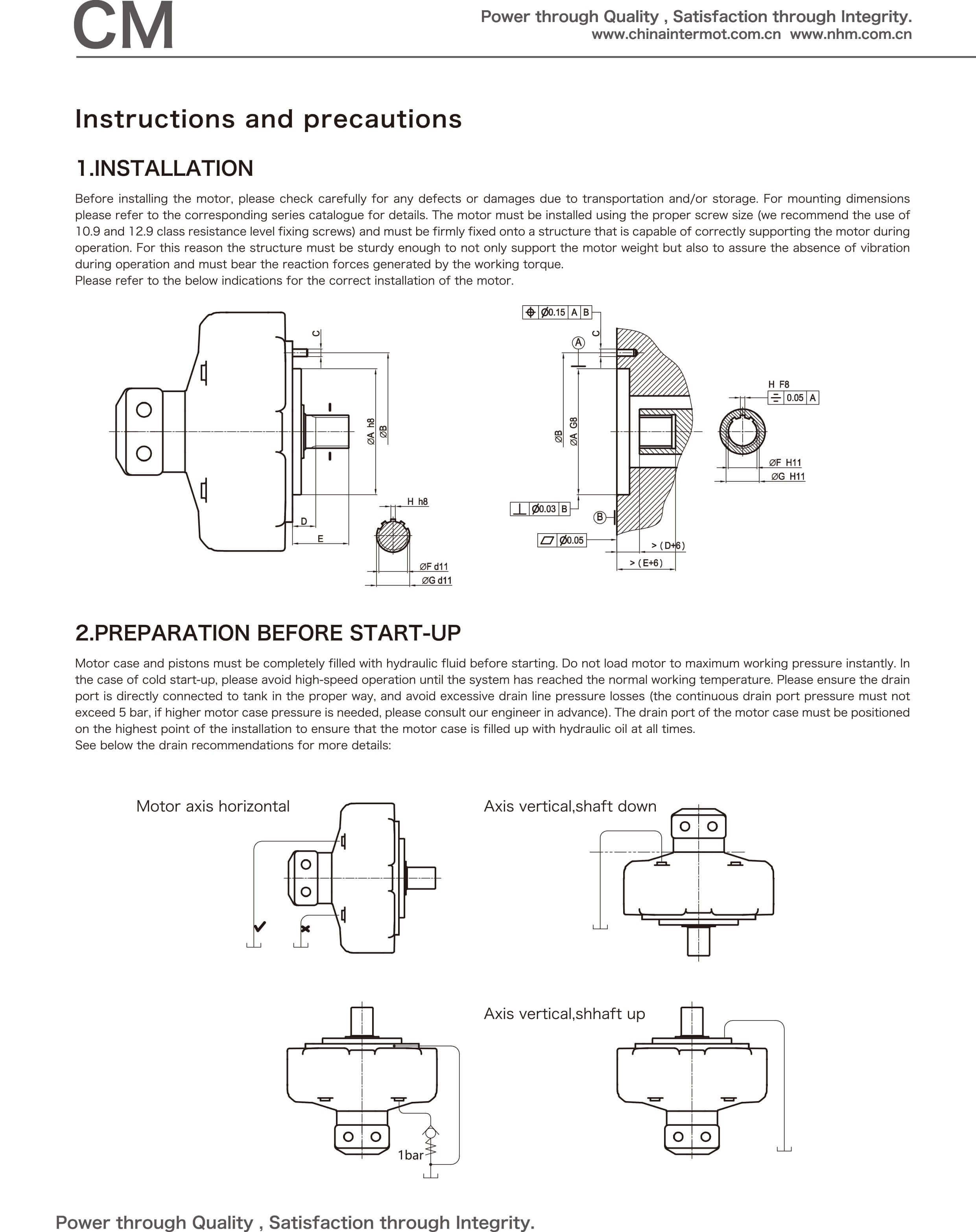

Matters needing attention
