FMC Series

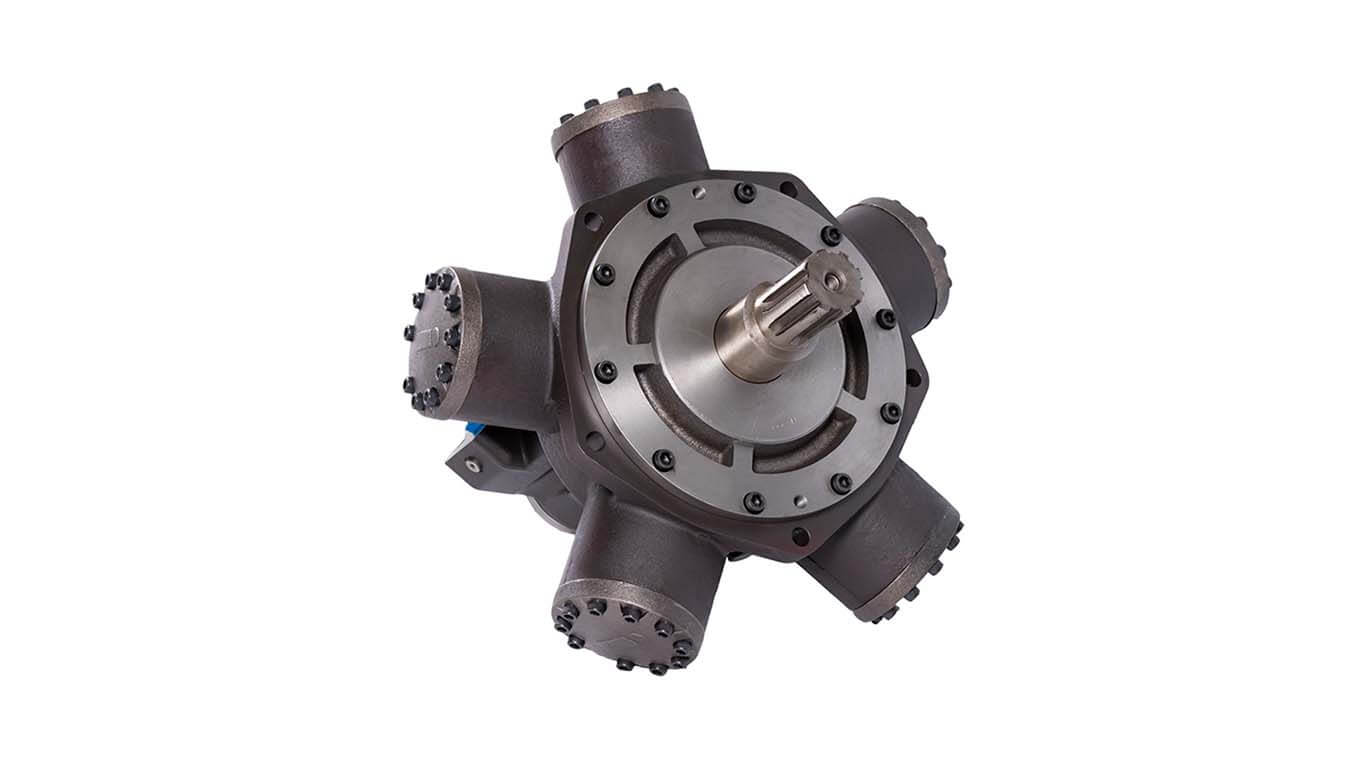

FMC series dual displacement hydraulic motor is an upgrade of the FMB series fixed displacement hydraulic motor.The FMC series dual displacement hydraulic motor enables users to select the required displacement for a wide range of special working conditions，meanwhile get high displacement and low displacement switching.

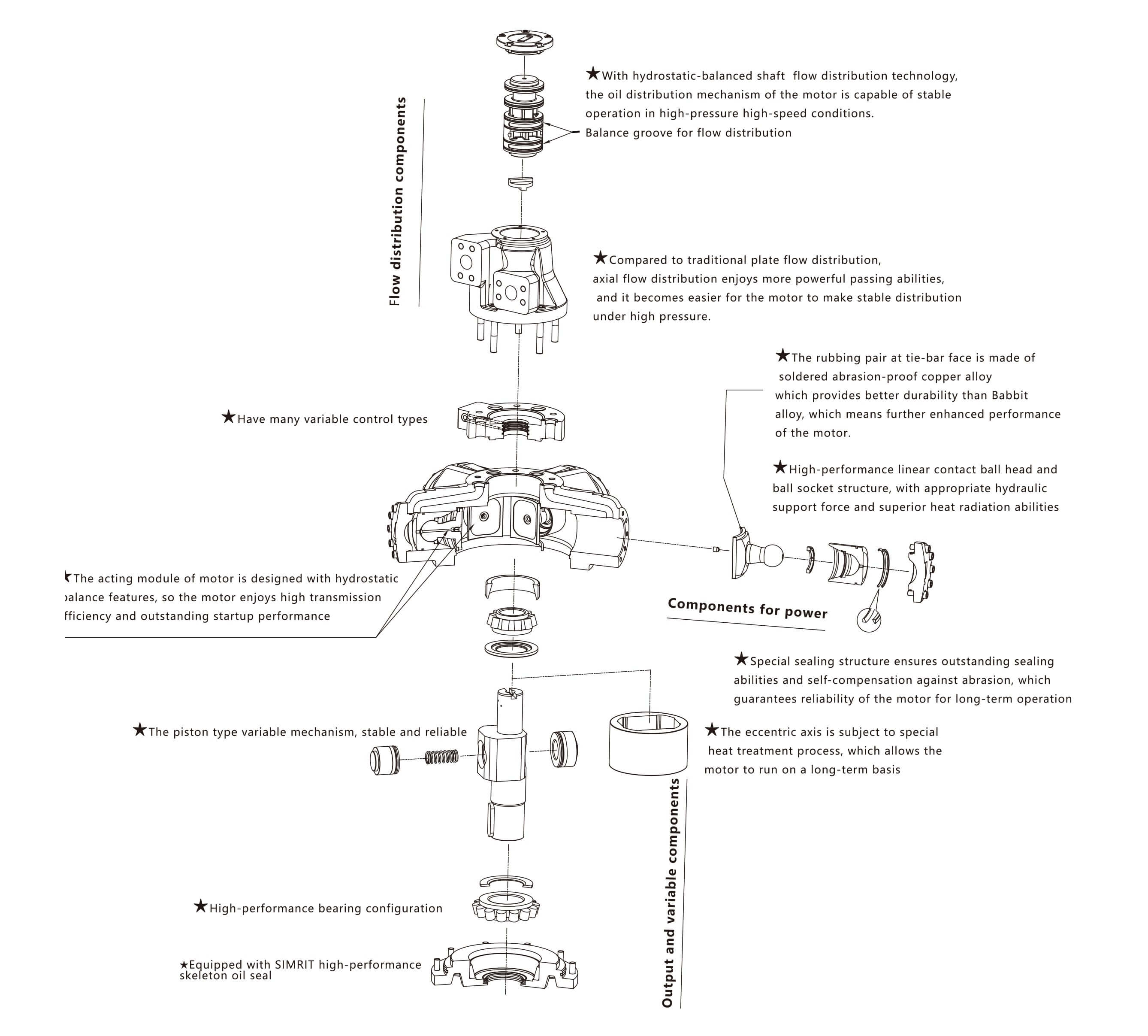

Product features

With hydraulic balancing axial distribution technology, the motor's operation has very high stability.
Axial flow distribution enjoys more powerful passing abilities.
The acting module of motor is designed with hydrostatic balance features, which effects the motor with high transmission efficiency and outstanding start-up performance.
The rod surface friction pairs adopt abrasion-proof copper alloy, which provides better durability.
Patented design of ball head and ball socket structure, guarantees apporopriate hydraulic support force and superior heat dissipation performance.
The piston variable displacement mechanism, stable and reliable.

Range of application
Can be widely used in shipbuilding, mining, construction metallurgy, petroleum, coal, geological drilling and other industries need different speed conditions.

FMC Series

The following data are measured and obtained under specfic actual experimental conditions, and only for product description purposes. The data shoud not be interpreted as warranted characteristics in legal term.Ningbo lntermot (Ningbo Olil Control Hydraulic Co. Ltd.) reserves the rights to implement modifications without notice. All Partal or total reproduction and copy of such data without formal authorzation is stricty forbidden.

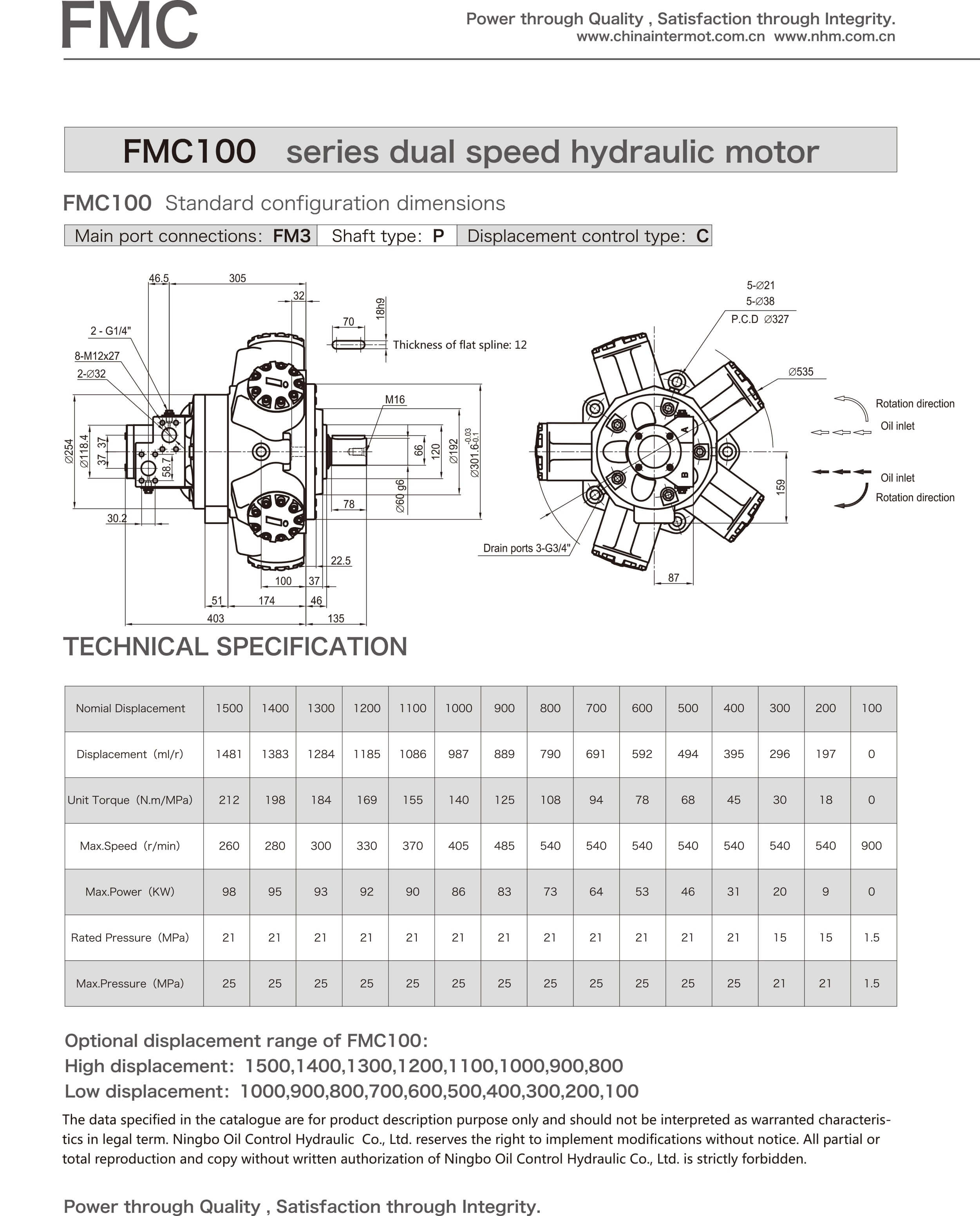

FMC100 TECHNICAL SPECIFICATION
Nomial Displacement	ml/r	1500	1400	1300	1200	1100	1000	900	800	700	600	500	400	300	200	100
Displacement	ml/r	1481	1383	1284	1185	1086	987	889	790	691	592	494	395	296	197	0
Unit Torque	Nm.MPa	212	198	184	169	155	140	125	108	94	78	68	45	30	18	0
Max.Speed	r/min	260	280	300	330	370	405	485	540	540	540	540	540	540	540	900
Max.Power	KW	98	95	93	92	90	86	83	73	64	53	46	31	20	9	0
Rated Pressure	MPa	21	21	21	21	21	21	21	21	21	21	21	21	15	15	1.5
Max.Pressure	MPa	25	25	25	25	25	25	25	25	25	25	25	25	21	21	1.5
Optional displacement range of FMC100：
High displacement：1500，1400,1300,1200,1100,1000,900,800
Low displacement：1000,900,800，700,600,500,400,300,200,100

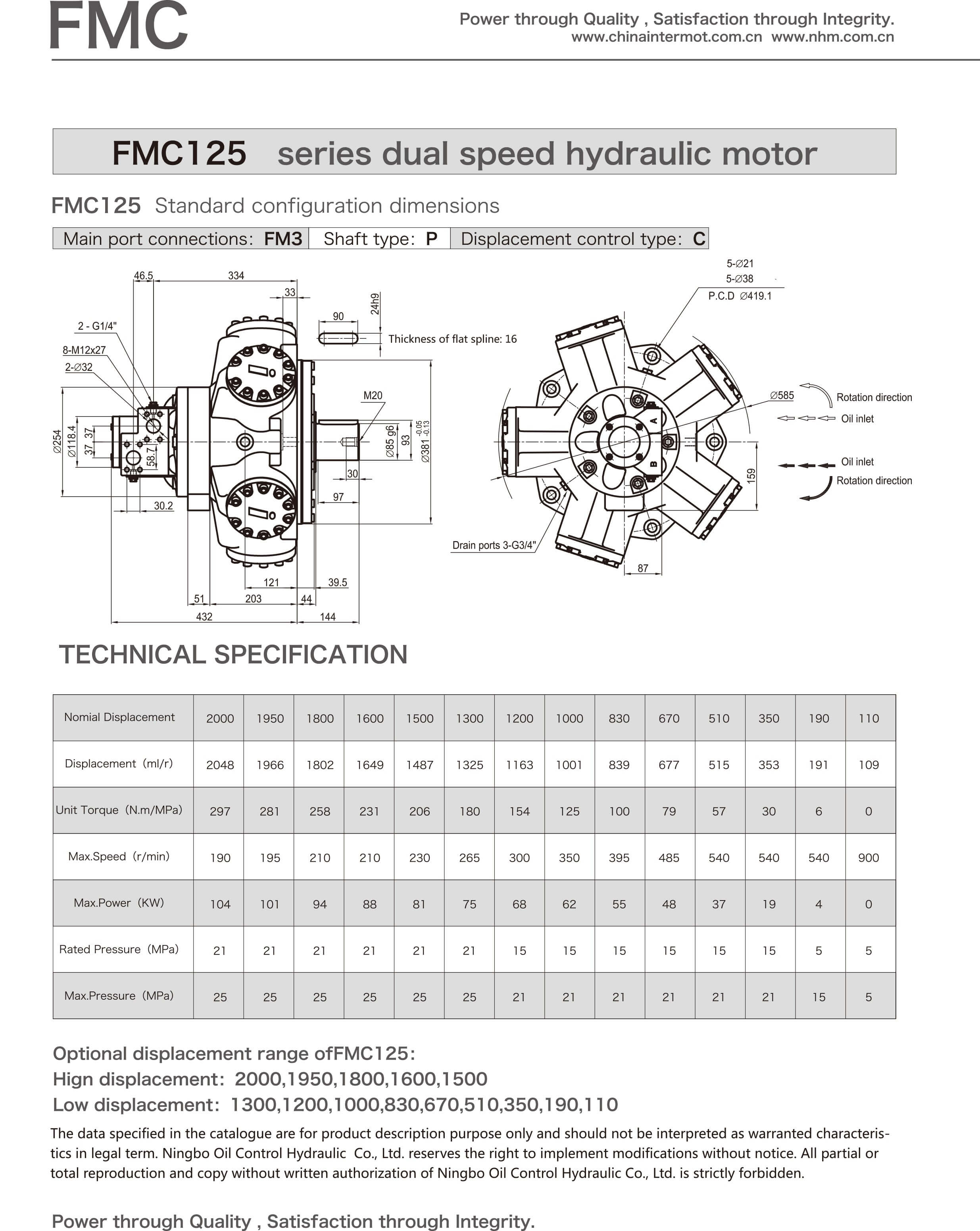

FMC125 TECHNICAL SPECIFICATION
Nomial Displacement	ml/r	2000	1950	1800	1600	1500	1300	1200	1000	830	670	510	350	190	110
Displacement	ml/r	2048	1966	1082	1649	1487	1325	1163	1001	839	677	515	353	191	109
Unit Torque	Nm.MPa	297	281	258	231	206	180	154	125	100	79	57	30	6	0
Max.Speed	r/min	190	195	210	210	230	265	300	350	395	485	540	540	540	900
Max.Power	KW	104	101	94	88	81	75	68	62	55	48	37	19	4	0
Rated Pressure	MPa	21	21	21	21	21	21	15	15	15	15	15	15	5	5
Max.Pressure	MPa	25	25	25	25	25	25	21	21	21	21	21	21	15	5
Optional displacement range of FMC125：
High displacement：2000,1950,1800,1600,1500
Low displacement：1300,1200,1000,830,670,510,350,190,110

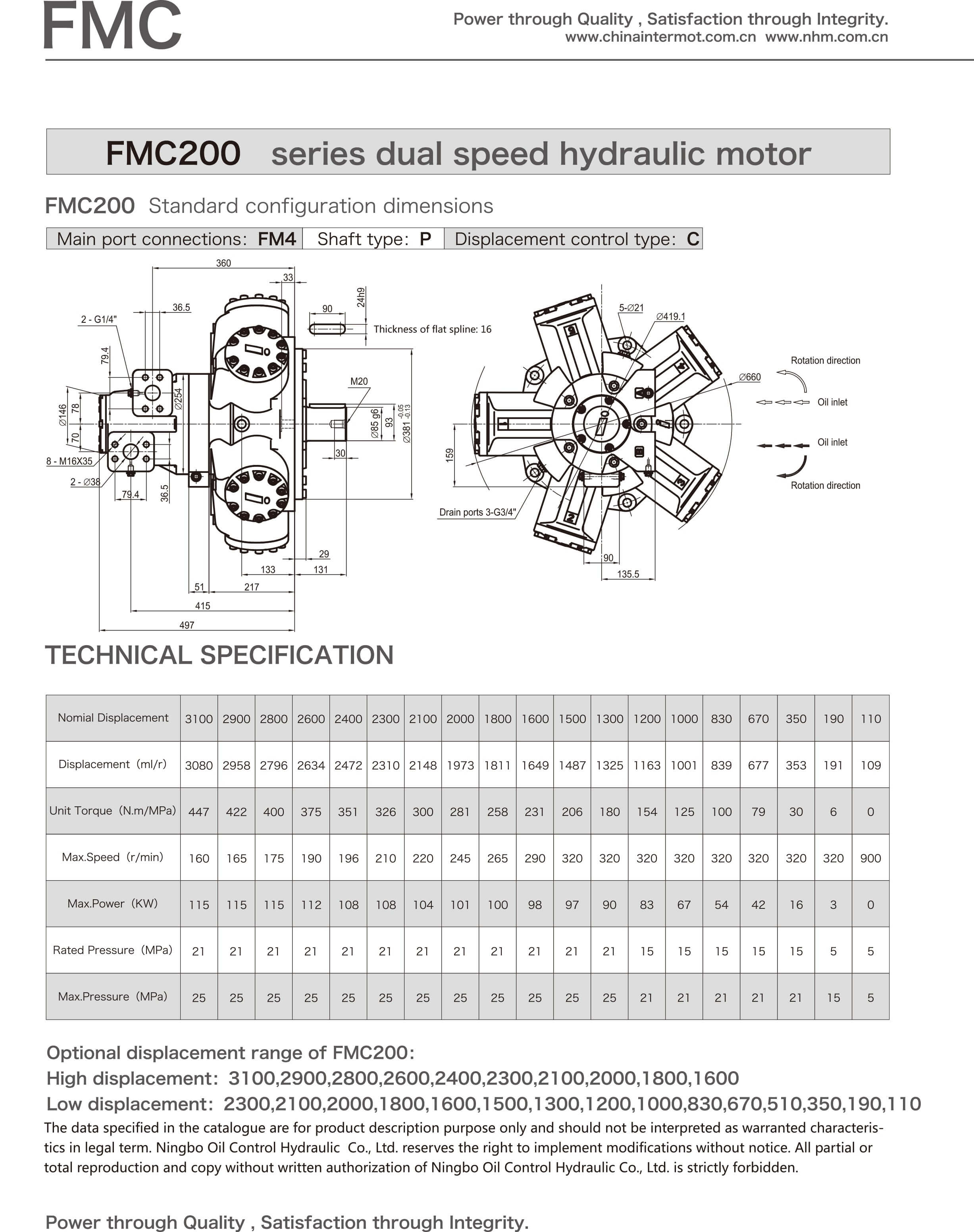

FMC200 TECHNICAL SPECIFICATION
Nomial Displacement	ml/r	3100	2900	2800	2600	2400	2300	2100	2000	1800	1600	1500	1300	1200	1000	830	670	510	350	190	110
Displacement	ml/r	3080	2958	2796	2634	2472	2310	2148	1973	1811	1649	1487	1325	1163	1001	839	677	515	353	191	109
Unit Torque	Nm.MPa	447	422	400	375	351	326	300	281	258	231	206	180	154	125	100	79	57	30	6	0
Max.Speed	r/min	160	165	175	190	196	210	200	245	265	290	320	320	320	320	320	320	320	320	320	900
Max.Power	KW	115	115	115	112	108	108	104	101	100	98	97	90	83	67	54	42	31	16	3	0
Rated Pressure	MPa	21	21	21	21	21	21	21	21	21	21	21	21	15	15	15	15	15	15	5	5
Max.Pressure	MPa	25	25	25	25	25	25	25	25	25	25	25	25	21	21	21	21	21	21	15	5
Optional displacement range of FMC200：
High displacement：3100,2900,2800,2600,2400,2300,2100,2000,1800,1600
Low displacement：2300,2100,2000,1800,1600,1500,1300,1200,1000,830,670,510,350,190,110

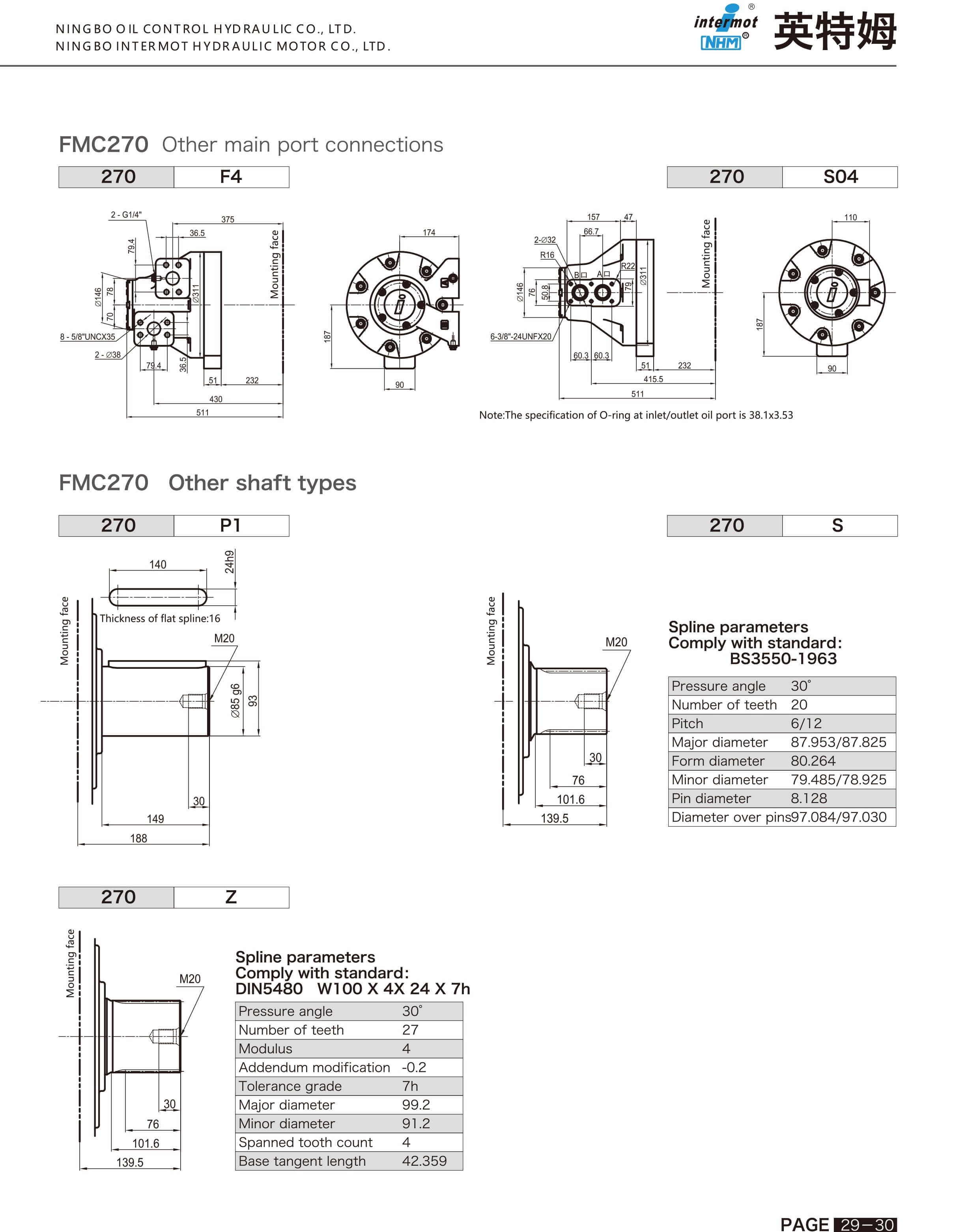

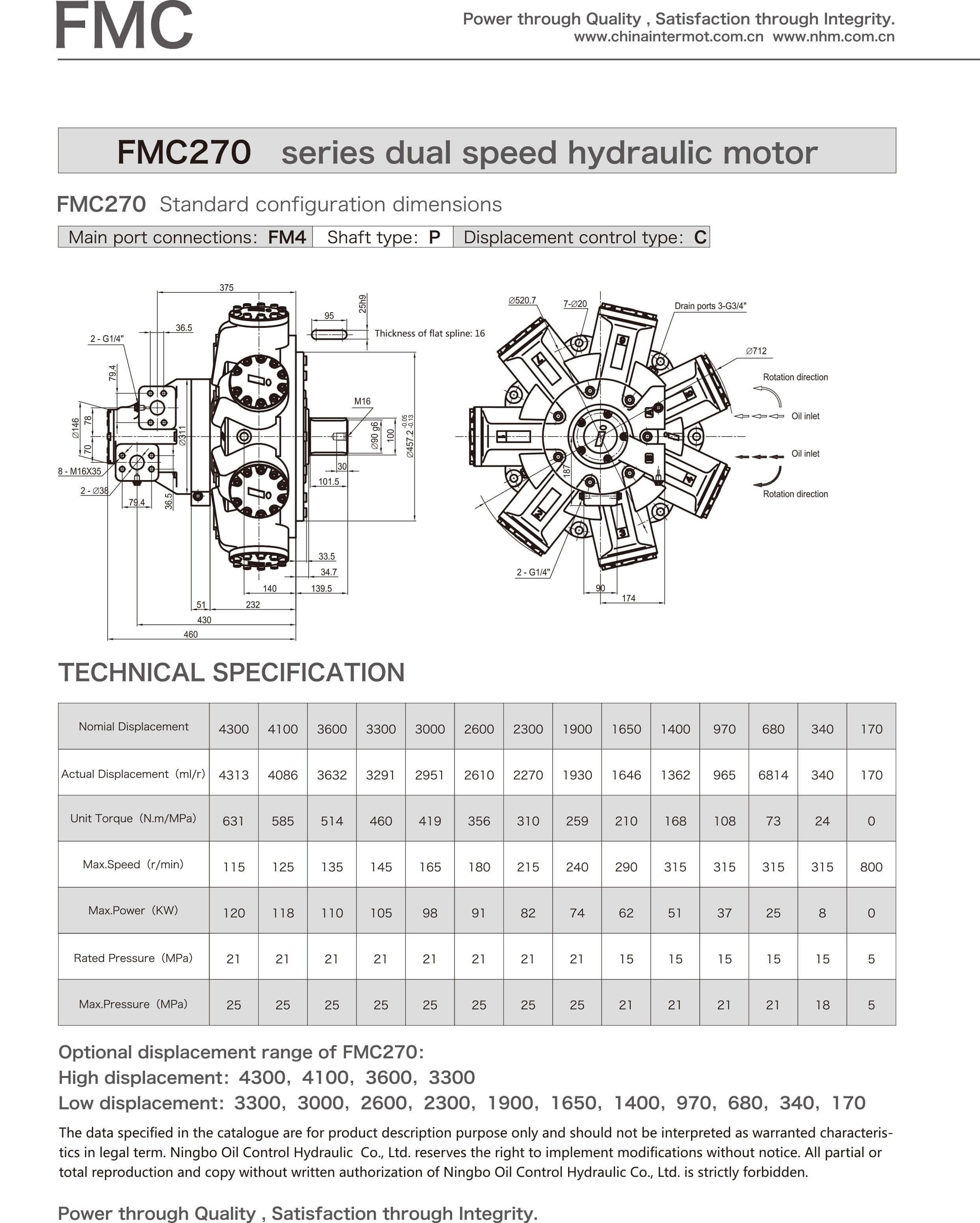

FMC270 TECHNICAL SPECIFICATION
Nomial Displacement	ml/r	4300	4100	3600	3300	3000	2600	2300	1900	1650	1400	970	680	340	170
Displacement	ml/r	4313	4086	3632	3291	2951	2610	2270	1930	1646	1362	965	6814	340	170
Unit Torque	Nm.MPa	631	585	514	460	419	356	310	259	210	168	108	73	24	0
Max.Speed	r/min	115	125	135	145	165	180	215	240	290	315	315	315	315	800
Max.Power	KW	120	118	110	105	98	91	82	74	62	51	37	25	8	0
Rated Pressure	MPa	21	21	21	21	21	21	21	21	15	15	15	15	15	5
Max.Pressure	MPa	25	25	25	25	25	25	25	25	21	21	21	21	18	5
Optional displacement range of FMC270：
High displacement：4300,4100,3600,3300
Low displacement：3300,3000,2600,2300,1900，1650，1400,970,680，340,170
